Male Jic X Male Bspp 9005-04-08

Specifications

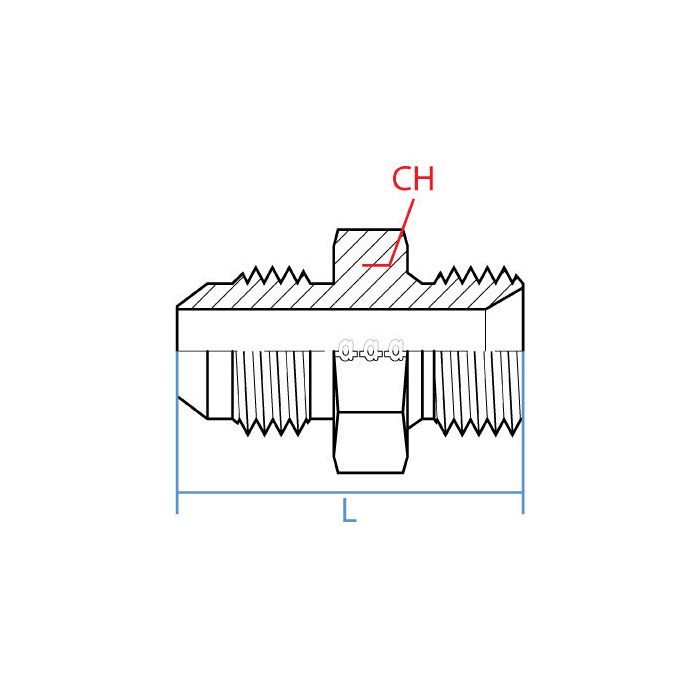

CH Width 27mm	L Length 37.2mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout G 1/2 - 14	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9005-04-08	Product Weight 0.10 lbs

Product Questions & Answers 3

Product Questions & Answers

Will this here fitting hold up okay in a hydraulic system running about 2500 PSI?

Question by: Steve J on Mar 5, 2026, 8:46 AM

This adapter is made from steel, so it should handle that pressure without any problems under normal hydraulic conditions.

Answer by: Customer Support on Mar 6, 2026, 9:22 PM

Got a piece of equipment running BSPP ports and my hydraulic lines are all JIC, this the kind of adapter that bridges that gap inline without needing extra fittings?

Question by: Sheila C on Oct 20, 2025, 12:24 PM

That's what it's built for. One end is 1/4" Male JIC on a 7/16-20 UNF thread, the other is 1/2" Male BSPP on a G 1/2-14 thread. Steel construction, straight body, so it keeps your line routing clean without adding bends or bulk. Common situation on mixed fleets or equipment that came in from overseas with BSPP ports already built in.

Answer by: Customer Support on Oct 22, 2025, 7:41 AM

trying to hook a 1/4 jic hose end to a port thats g 1/2-14, is this the right adapter?

Question by: Judy M on Mar 2, 2026, 6:54 AM

For tying those two thread standards together inline, it matches a 1/4 inch Male JIC on one side with 7/16-20 UNF threads and a 1/2 inch Male BSPP on the other with G 1/2-14 threads.

Answer by: Customer Support on Mar 3, 2026, 11:56 AM
