Male Jic X Male Bspp

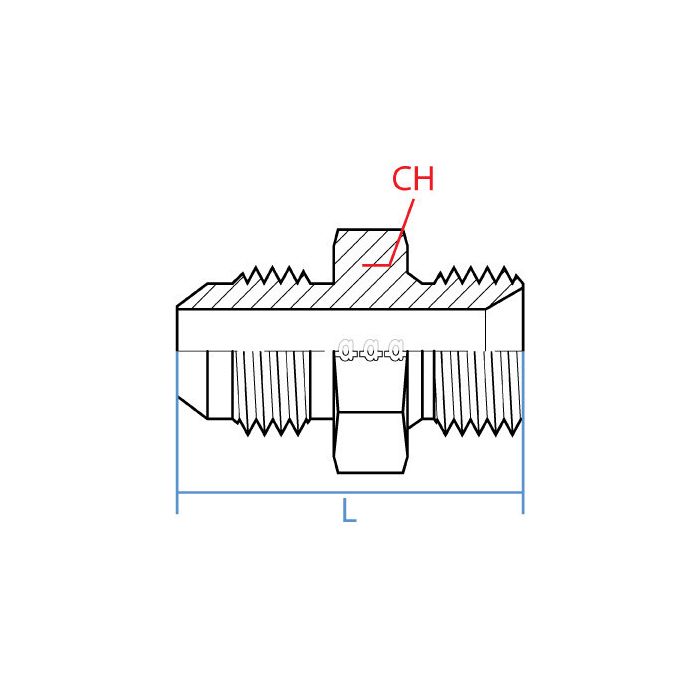

CH Width 22mm	L Length 34.2mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout G 3/8 - 19	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9005-04-06	Product Weight 0.15 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a piece of equipment running BSPP fittings on one end and JIC on the other, will this adapter bridge that gap straight through without needing extra pieces in between?

Question by: Rod W on Sep 4, 2025, 2:38 PM

That's what this one does. One end is 1/4" JIC with a 7/16-20 UNF thread, and the other is 3/8" BSPP running a G 3/8-19 thread. Both ends are male, so you're connecting it directly between two female ports. No extra union or coupler needed, just a single straight adapter doing the conversion in one shot.

Answer by: Customer Support on Sep 6, 2025, 6:32 AM
