Male Jic X Male Bspp 9005-04-04

Specifications

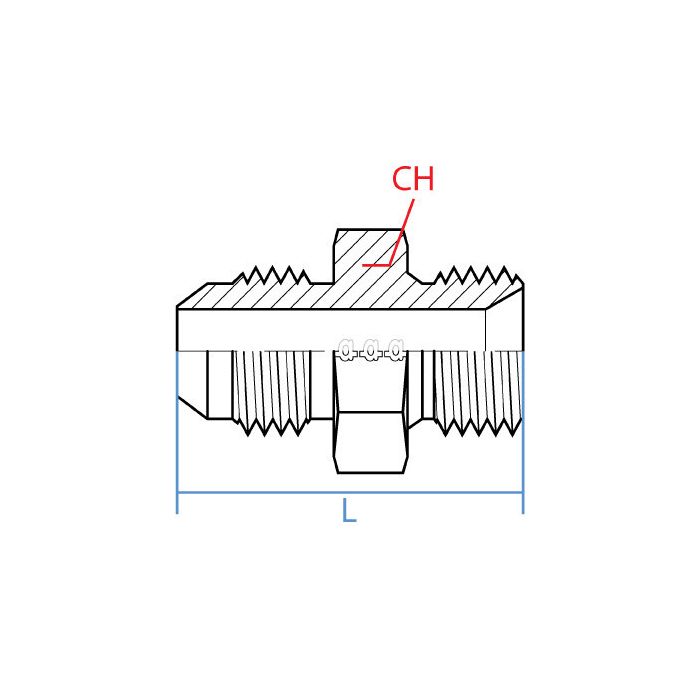

CH Width 19mm	L Length 33.1mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout G 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9005-04-04	Product Weight 0.05 lbs

Product Questions & Answers 3

Product Questions & Answers

Got a piece of equipment with a G 1/4-19 BSPP port and need to tie into a JIC line, this the right adapter for that?

Question by: Diane K on Jun 25, 2025, 11:27 AM

That's what this fitting handles. One end is 1/4" male JIC running 7/16-20 UNF threads, and the other end is 1/4" male BSPP with G 1/4-19 threads. Both sides are male, so you'd be threading this into female ports on each end of your connection. It's a straight adapter, steel construction, with a 19mm wrench flat to torque it down proper. Overall length comes in at 33.1mm, so it's compact enough to fit in tighter hydraulic connections setups without a lot of extra stick-out.

Answer by: Customer Support on Jun 27, 2025, 6:55 AM

got a hose end that’s 7/16-20 JIC on it and the other side is G 1/4-19 BSPP. is this the straight adapter for that?

Question by: Gene G on Feb 24, 2026, 10:07 AM

Matches that combo. One end is a 1/4 in male JIC with 7/16-20 UNF threads, and the other end is a 1/4 in male BSPP with G 1/4-19 threads, in a straight steel fitting.

Answer by: Customer Support on Feb 25, 2026, 10:39 AM

Just wanna make sure, will this fitting work to connect a JIC to a BSPP line?

Question by: Freddie M on Jun 24, 2025, 12:01 PM

This Adaptall fitting is indeed designed to connect male JIC and male BSPP ports. It has a 1/4" male JIC side with 7/16 - 20 UNF threads and a 1/4" male BSPP side with G 1/4 - 19 threads.

Answer by: Customer Support on Jun 26, 2025, 6:43 AM
