Male Jic X Male Bspp 9005-04-02

Specifications

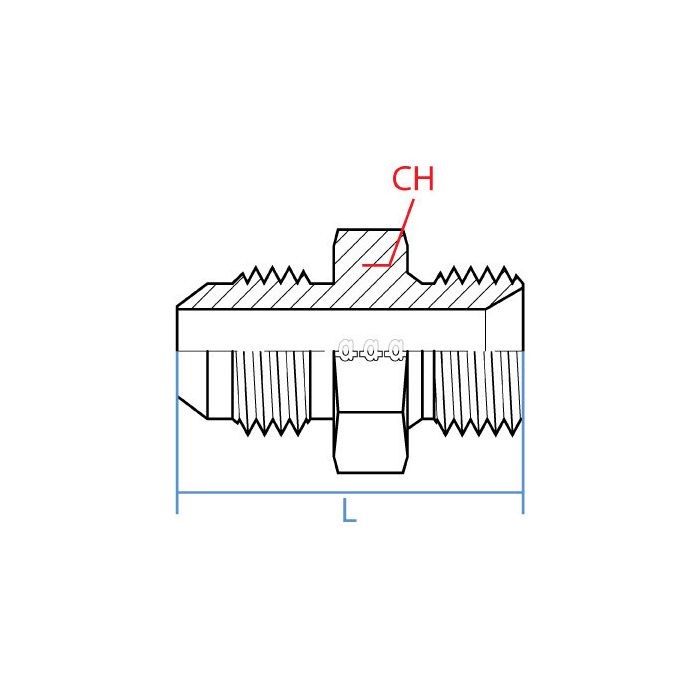

CH Width 14mm	L Length 30.6mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout G 1/8 - 28	Side 2 Gender M	Side 2 Size 1/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9005-04-02	Product Weight 0.05 lbs

Product Questions & Answers 3

Product Questions & Answers

got a 1/4" JIC line i need to tie into a 1/8" BSPP port, this the right piece for that?

Question by: Todd T on Jan 31, 2026, 7:25 PM

That's what this adapter is built for. One end is 7/16-20 UNF, which is the thread spec for 1/4" JIC, and the other end is G 1/8-28, the standard BSPP thread for a 1/8" port. Both ends are male, so you'd need the mating female fittings on each side to complete the connection. Steel construction, straight profile, nothing fancy, just a solid piece for bridging those two thread types in a hydraulic line.

Answer by: Customer Support on Feb 2, 2026, 10:18 AM

Will this here fitting hold up alright in a hydraulic setup on farm equipment?

Question by: Eddie C on Nov 25, 2025, 4:54 PM

Constructed from durable steel, this adapter is designed for reliable performance in industrial hydraulic systems, making it suitable for the demands of farm equipment.

Answer by: Customer Support on Nov 27, 2025, 6:34 AM

trying to swap an adapter on a little hydraulic line. is this the one that goes from 7/16-20 UNF JIC to G 1/8-28 BSPP?

Question by: Ricky B on Jun 25, 2025, 10:45 AM

Match it up by the thread callouts and genders. This adapter is male JIC on one side with 7/16 - 20 UNF (1/4 inch size), and male BSPP on the other side with G 1/8 - 28 (1/8 inch size), and it is a straight steel fitting.

Answer by: Customer Support on Jun 27, 2025, 8:03 AM
