Male Bspp X Male Metric

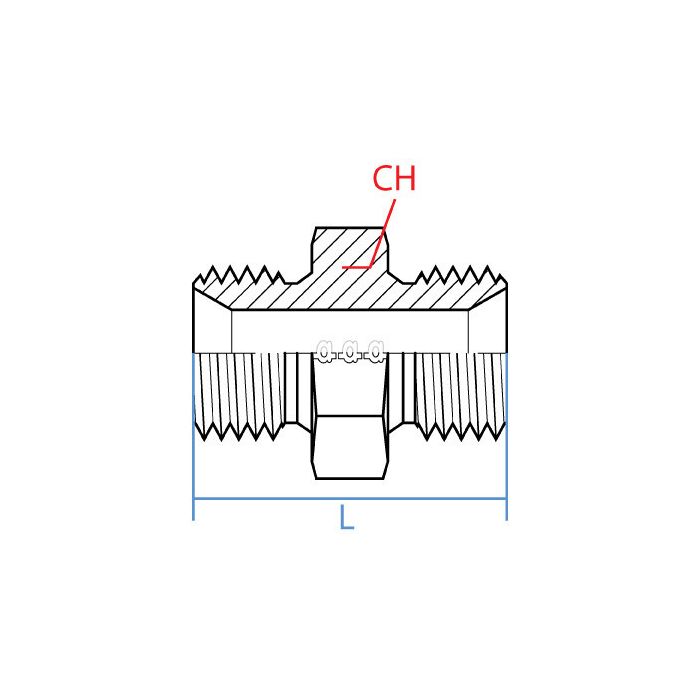

CH Width 41mm	L Length 53.4mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1 - 11	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Bspp	Side 2 Callout M30 X 1.5	Side 2 Gender M	Side 2 Size 30X1.5	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9004-16-30	Product Weight 0.99 lbs

Product Questions & Answers 2

Product Questions & Answers

Got a hydraulic line coming off a British-made pump with a 1" BSPP male port, need to tie into a metric fitting on the other end that's M30 x 1.5. This the right adapter for that?

Question by: Roy M on Jun 8, 2025, 1:09 PM

That's what this one's built for. One end is G 1-11 male BSPP, which covers your 1" British Standard Pipe Parallel connection, and the other end comes out as M30 x 1.5 male metric. Both sides are male, so you'd need female ports or couplings on whatever you're threading into. It's a straight adapter, steel construction, 53.4mm overall length with a 41mm wrench flat for tightening. Solid fit for bridging that BSPP-to-metric gap.

Answer by: Customer Support on Jun 10, 2025, 10:45 AM

trying to hook a G 1-11 port up to a metric line, is this the right adapter?

Question by: Ross A on Sep 18, 2025, 8:48 PM

For that kind of mix-and-match, it’s a straight steel adapter with a male BSPP thread on one end (G 1 - 11, 1 inch) and a male Metric thread on the other (M30 x 1.5, 30x1.5).

Answer by: Customer Support on Sep 20, 2025, 8:25 AM
