Male Bspp X Male Metric 9004-12-18

Specifications

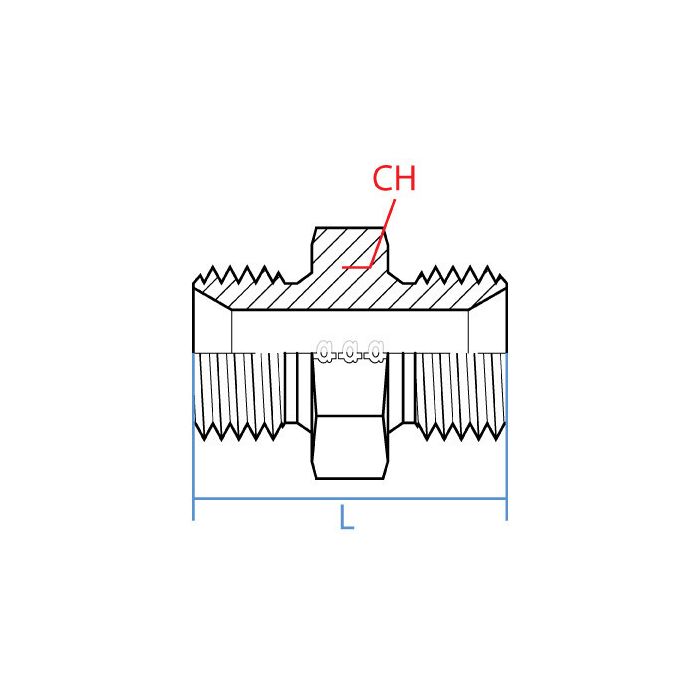

CH Width 32mm	L Length 42.9mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 3/4 - 14	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Bspp	Side 2 Callout M18 X 1.5	Side 2 Gender M	Side 2 Size 18mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9004-12-18	Product Weight 0.26 lbs

Product Questions & Answers 3

Product Questions & Answers

Got a metric port on a hydraulic manifold that's M18 x 1.5 and need to tie into a BSPP line, this fitting do that job?

Question by: Howard P on Oct 1, 2025, 8:24 AM

Yeah, that's exactly what this one's built for. One end is M18 x 1.5 male metric, the other is G 3/4-14 male BSPP, so you'd be connecting those two thread types in a straight shot. Both sides are male, so make sure your ports are female on both ends. Steel construction, 32mm wrench flats, and it runs 42.9mm end to end, which is useful to know if space is tight around the manifold.

Answer by: Customer Support on Oct 3, 2025, 6:01 AM

trying to hook a G 3/4-14 port to an M18 x 1.5 line, is this the right straight adapter?

Question by: Shawn T on May 9, 2025, 7:03 PM

Straight-through connection is what it’s built for. One end is a male BSPP G 3/4-14 thread (3/4 inch size) and the other end is a male metric M18 x 1.5 thread (18 mm size), both on a steel body.

Answer by: Customer Support on May 10, 2025, 7:24 PM

Will this fitting work to connect a 3/4" BSPP male thread to an 18mm metric male thread?

Question by: Earl O on Dec 5, 2025, 2:21 PM

Yes, that's precisely what this Adaptall fitting is designed for. It has a G 3/4-14 male BSPP thread on one side and an M18 x 1.5 male metric thread on the other.

Answer by: Customer Support on Dec 6, 2025, 2:30 PM
