Male Bspp X Male Metric 9004-10-26

Specifications

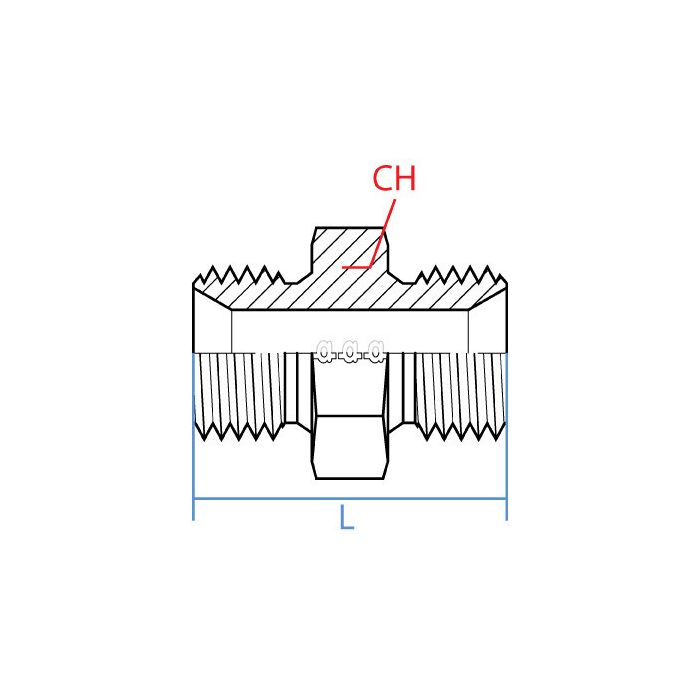

CH Width 32mm	L Length 42.1mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 5/8 - 14	Side 1 Gender M	Side 1 Size 5/8"	Side 1 Type Bspp	Side 2 Callout M26 X 1.5	Side 2 Gender M	Side 2 Size 26mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9004-10-26	Product Weight 0.99 lbs

Product Questions & Answers 3

Product Questions & Answers

got a hose end with G 5/8-14 BSPP on it and I need to tie into M26 x 1.5, is this the right adapter?

Question by: Billy G on Jun 16, 2025, 6:06 PM

For bridging those two thread standards, this adapter matches a G 5/8 - 14 BSPP male on one side and an M26 x 1.5 metric male on the other, so it fits that exact BSPP to metric connection.

Answer by: Customer Support on Jun 18, 2025, 7:43 AM

Will this fitting hold up okay in a hydraulic system running around 3000 psi?

Question by: Ross W on Oct 15, 2025, 10:48 AM

Constructed from durable steel, this adapter should provide reliable performance in hydraulic systems operating at that pressure.

Answer by: Customer Support on Oct 17, 2025, 6:04 AM

Got a piece of equipment running G 5/8 BSPP ports and the replacement hose end we picked up is threaded M26 x 1.5 metric. this adapter gonna bridge that gap?

Question by: Norm H on Oct 23, 2025, 6:59 PM

Yeah, that's exactly what this one's built for. One side is G 5/8 - 14 BSPP male and the other is M26 x 1.5 metric male, so it connects those two thread standards directly. Steel construction keeps it solid under the kind of stress you'd expect in a working hydraulic setup. At 42.1mm long and 32mm across the wrench flats, it's compact enough to fit in tight hydraulic connections runs without adding much bulk.

Answer by: Customer Support on Oct 25, 2025, 4:49 PM
