Male Bspp X Male Metric 9004-10-22

Specifications

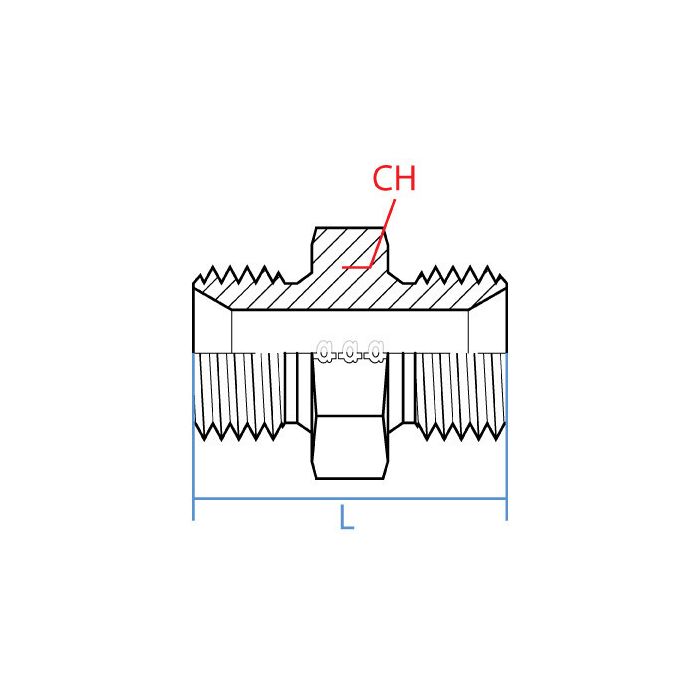

CH Width 30mm	L Length 42.9mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 5/8 - 14	Side 1 Gender M	Side 1 Size 5/8"	Side 1 Type Bspp	Side 2 Callout M22 X 1.5	Side 2 Gender M	Side 2 Size 22mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9004-10-22	Product Weight 0.30 lbs

Product Questions & Answers 3

Product Questions & Answers

i’ve got a G 5/8-14 male BSPP port on one side and need to tie into an M22 x 1.5 metric thread, is that exactly what this adapter is for

Question by: Floyd H on May 19, 2025, 8:11 PM

Built for joining two different thread standards, it connects a G 5/8-14 Male BSPP on one end to an M22 x 1.5 Male Metric on the other in a straight steel adapter.

Answer by: Customer Support on May 21, 2025, 6:33 AM

Got a hydraulic line running G 5/8-14 BSPP on one end and M22 x 1.5 metric on the other, will this adapter actually bridge those two without any modification to the existing ports?

Question by: Patty E on Nov 14, 2025, 11:27 AM

That's what this one's built for. One end is G 5/8-14 Male BSPP and the other is M22 x 1.5 Male Metric, both in a straight configuration, so you're threading directly into your existing ports without cutting, welding, or reworking anything. Both sides are male, so make sure your mating ports are female on each end before ordering.

Answer by: Customer Support on Nov 16, 2025, 6:06 AM

Will this adapter work for connecting a 5/8" BSPP male fitting to an M22 x 1.5 male fitting?

Question by: Dustin M on Jan 17, 2026, 4:49 PM

This adapter is designed to reliably connect a G 5/8-14 Male BSPP port to an M22 x 1.5 Male Metric thread.

Answer by: Customer Support on Jan 19, 2026, 7:57 AM
