Male Bspp X Male Metric

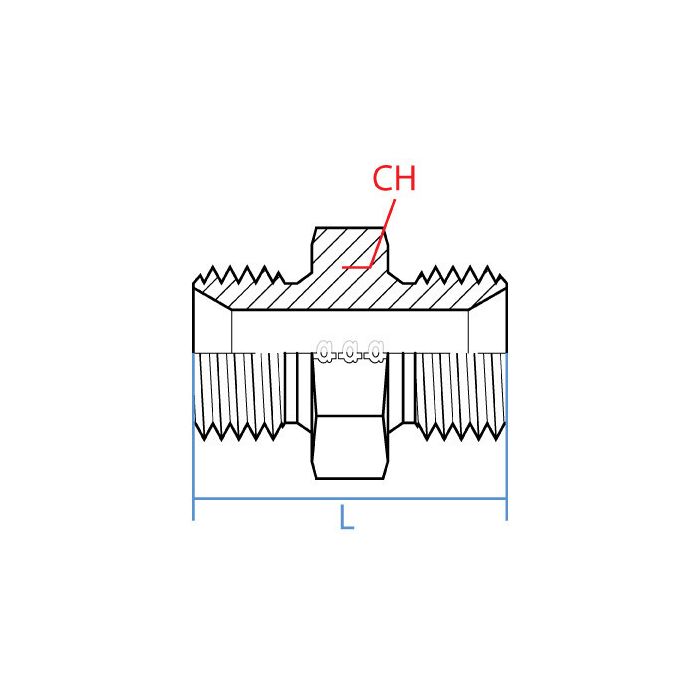

CH Width 27mm	L Length 39.7mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1/2 - 14	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Bspp	Side 2 Callout M22 X 1.5	Side 2 Gender M	Side 2 Size 22mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9004-08-22	Product Weight 0.31 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to hook a G 1/2 - 14 port to an M22 x 1.5 line, is that what this adapter’s for?

Question by: Johnny W on Nov 9, 2025, 7:02 PM

Built for exactly that thread change, it is a straight steel adapter with a male BSPP G 1/2 - 14 on one end and a male metric M22 x 1.5 on the other.

Answer by: Customer Support on Nov 11, 2025, 9:13 AM

Got a hydraulic line running G 1/2 BSPP on one end and M22 x 1.5 metric on the other, this fitting gonna bridge that gap straight through?

Question by: Ross W on Oct 15, 2025, 9:13 PM

That's exactly what this adapter is built for. One side is G 1/2 - 14 BSPP male and the other is M22 x 1.5 metric male, so it connects those two thread standards in a straight-through configuration without any reducers or extra pieces in between.

Answer by: Customer Support on Oct 17, 2025, 4:57 PM

What size wrench do I need to tighten this fitting down good and snug?

Question by: Phil F on May 14, 2025, 8:26 AM

You'll need a 27mm wrench for the flats on this adapter.

Answer by: Customer Support on May 16, 2025, 6:04 AM
