Male Bspp X Male Metric 9004-08-20

Specifications

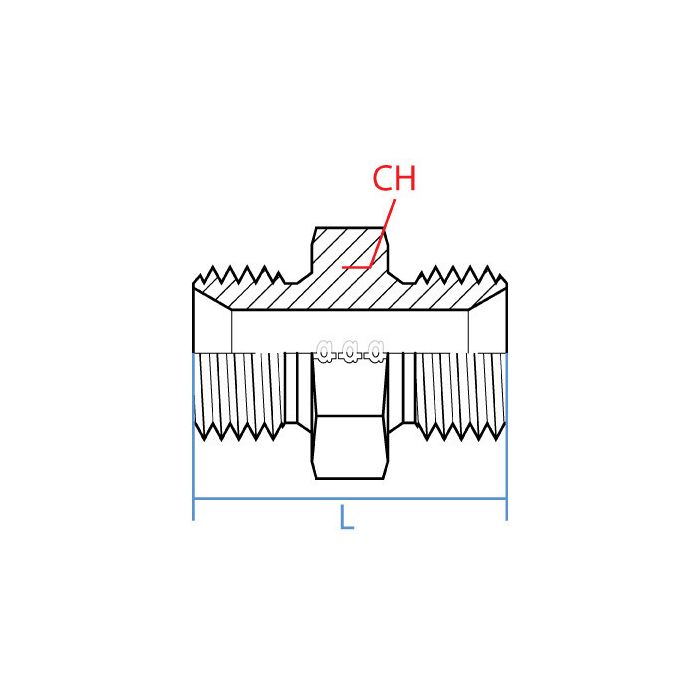

CH Width 27mm	L Length 35mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1/2 - 14	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Bspp	Side 2 Callout M20 X 1.5	Side 2 Gender M	Side 2 Size 20mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9004-08-20	Product Weight 0.99 lbs

Product Questions & Answers 3

Product Questions & Answers

got a hose end that’s G 1/2 - 14 BSPP male and my port is M20 x 1.5. is this the right little adapter to marry those up

Question by: Ricky H on Oct 30, 2025, 4:22 PM

It matches that combo as a straight steel adapter with a G 1/2 - 14 BSPP male on Side 1 and an M20 x 1.5 metric male on Side 2.

Answer by: Customer Support on Nov 1, 2025, 6:47 AM

Will this fitting hold up okay in an oily environment, or do I need to look for something more heavy-duty?

Question by: Lee C on Aug 26, 2025, 8:28 PM

Constructed from durable steel, this adapter should provide reliable performance even with exposure to typical hydraulic oils.

Answer by: Customer Support on Aug 28, 2025, 7:20 AM

got a metric port on a pump housing that's M20 x 1.5 and need to tie into a BSPP line, this the right piece for that?

Question by: Troy M on Jan 23, 2026, 9:34 PM

That's the situation this adapter handles. One end is M20 x 1.5 metric male, the other is G 1/2 - 14 BSPP male, so it bridges those two thread standards in a single straight fitting. Steel construction keeps it solid under the kind of stress you'd see in a working hydraulic setup. At 35mm long and 27mm across the wrench flats, it's compact enough to fit in tighter spots without a lot of fuss.

Answer by: Customer Support on Jan 25, 2026, 6:54 AM
