Male Bspp X Male Metric 9004-08-18

Specifications

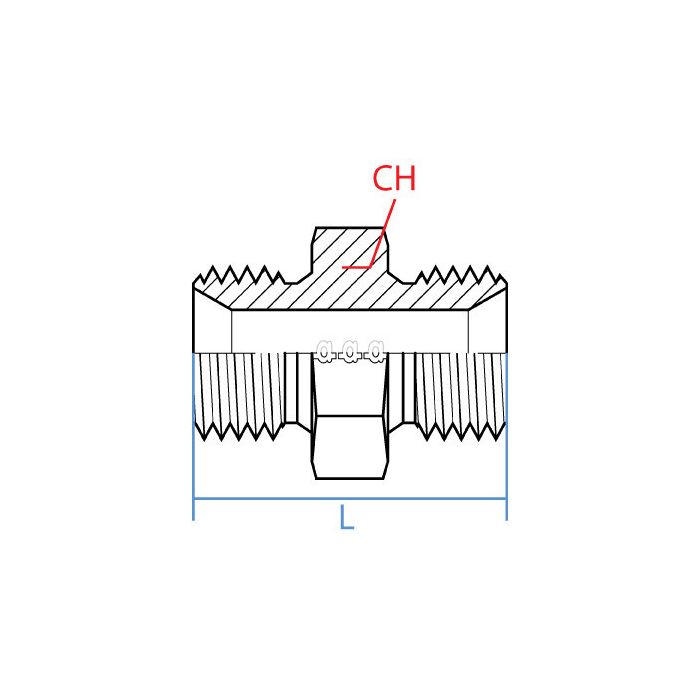

CH Width 27mm	L Length 34.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1/2 - 14	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Bspp	Side 2 Callout M18 X 1.5	Side 2 Gender M	Side 2 Size 18mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9004-08-18	Product Weight 0.13 lbs

Product Questions & Answers 3

Product Questions & Answers

got a hydraulic line coming off a British-threaded port and need to tie into a metric fitting on the other end, this the right piece for that?

Question by: Wes B on Sep 21, 2025, 9:03 AM

That's what this adapter is built for. One end is a G 1/2-14 BSPP male thread, and the other is an M18 x 1.5 metric male thread, so it bridges those two standards in a single straight body. Steel construction holds up fine in industrial hydraulic service, and at 34.5mm long with a 27mm wrench flat, it keeps things compact when you're working in a tight spot.

Answer by: Customer Support on Sep 22, 2025, 9:39 AM

What's the width on this fitting, gotta make sure it'll fit in the space I got.

Question by: Ralph P on Aug 15, 2025, 4:39 PM

The width across the flats (CH width) on this Adaptall fitting is 27mm.

Answer by: Customer Support on Aug 17, 2025, 8:41 AM

got a G 1/2-14 bsp p port on one side and need to land on M18 x 1.5, is this the right adapter?

Question by: Ralph C on May 21, 2025, 5:44 PM

For a straight thread-to-thread changeover, this adapter matches a G 1/2-14 BSPP male on one end and an M18 x 1.5 metric male on the other, so it fits that exact thread pairing.

Answer by: Customer Support on May 23, 2025, 6:48 AM
