Male Bspp X Male Metric 9004-06-20

Specifications

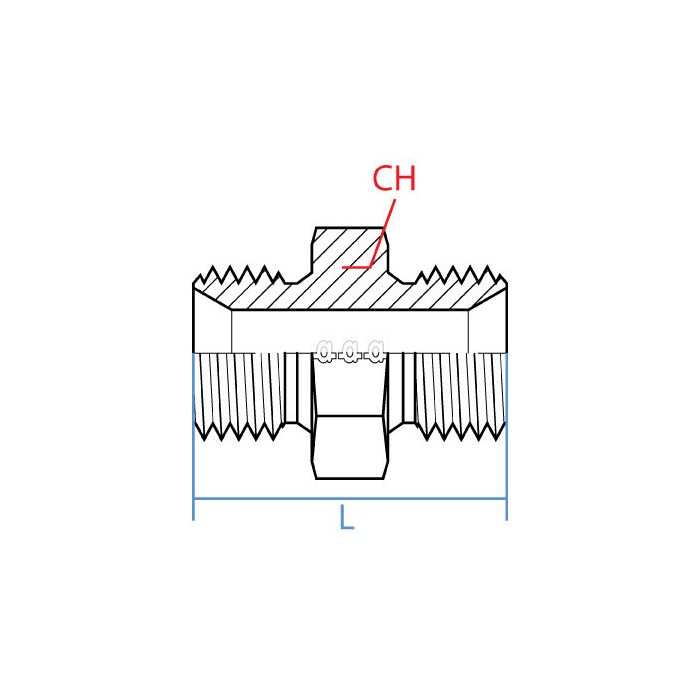

CH Width 27mm	L Length 41.4mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 3/8 - 19	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Bspp	Side 2 Callout M20 X 1.5	Side 2 Gender M	Side 2 Size 20mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9004-06-20	Product Weight 0.99 lbs

Product Questions & Answers 3

Product Questions & Answers

Reckon this would work to hook up a 3/8" BSPP line to somethin' with a M20 x 1.5 metric thread?

Question by: Frank M on Jan 20, 2026, 7:34 PM

That's exactly what this adapter is for. It's made to connect a G 3/8 - 19 male BSPP thread to a M20 x 1.5 male metric thread.

Answer by: Customer Support on Jan 22, 2026, 6:40 AM

trying to hook up a G 3/8-19 bspP port to an M20x1.5 line, is this the right adapter?

Question by: Lance H on May 1, 2025, 8:30 PM

For that exact thread combo, it matches. One side is a male G 3/8 - 19 BSPP thread and the other side is a male M20 x 1.5 metric thread, and it is a straight steel adapter.

Answer by: Customer Support on May 3, 2025, 6:22 AM

Got a metric port on a pump housing that's M20 x 1.5 and need to tie into a 3/8 BSPP line, this adapter do that straight through?

Question by: Hubert B on Mar 15, 2026, 1:10 PM

Yeah, that's exactly what this one's built for. One end is G 3/8-19 male BSPP and the other is M20 x 1.5 male metric, both male, straight configuration. Steel construction so it'll hold up in a working hydraulic system. At 41.4mm long and 27mm across the wrench flats, it's a compact piece that won't stick out too far in a tight install.

Answer by: Customer Support on Mar 17, 2026, 8:08 AM
