Male Bspp X Male Metric 9004-06-18

Specifications

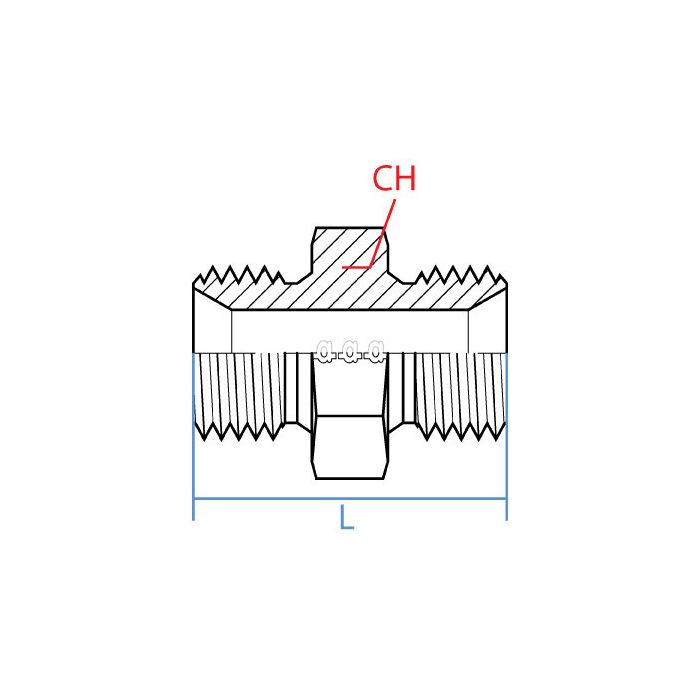

CH Width 22mm	L Length 31.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 3/8 - 19	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Bspp	Side 2 Callout M18 X 1.5	Side 2 Gender M	Side 2 Size 18mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9004-06-18	Product Weight 0.99 lbs

Product Questions & Answers 3

Product Questions & Answers

Will this adapter hold up in a hydraulic system that runs pretty much all day long?

Question by: Bobby R on Jun 3, 2025, 3:58 PM

Steel construction provides the durability needed for demanding hydraulic applications, so it should be suitable for continuous use in a hydraulic system.

Answer by: Customer Support on Jun 5, 2025, 6:03 AM

got a port that’s G 3/8-19 BSPP on one side and M18 x 1.5 on the other. is this the straight adapter for that?

Question by: Debbie J on Sep 3, 2025, 12:54 PM

For converting between those two thread types in a straight, in-line connection, this adapter matches a G 3/8-19 male BSPP end to an M18 x 1.5 male metric end.

Answer by: Customer Support on Sep 5, 2025, 12:40 PM

What exactly is this adapter doing, thread-wise? Like which end goes to what?

Question by: Kent M on Dec 31, 2025, 4:30 PM

One end carries a G 3/8-19 male BSPP thread and the other end is an M18 x 1.5 male metric thread. So if you've got a component with a BSPP port and another with a metric port, this piece bridges them in a straight line without any angled routing. Both ends are male, so you'd need female-ported components on each side to make up the connection.

Answer by: Customer Support on Jan 2, 2026, 6:38 AM
