Male Bspp X Male Metric

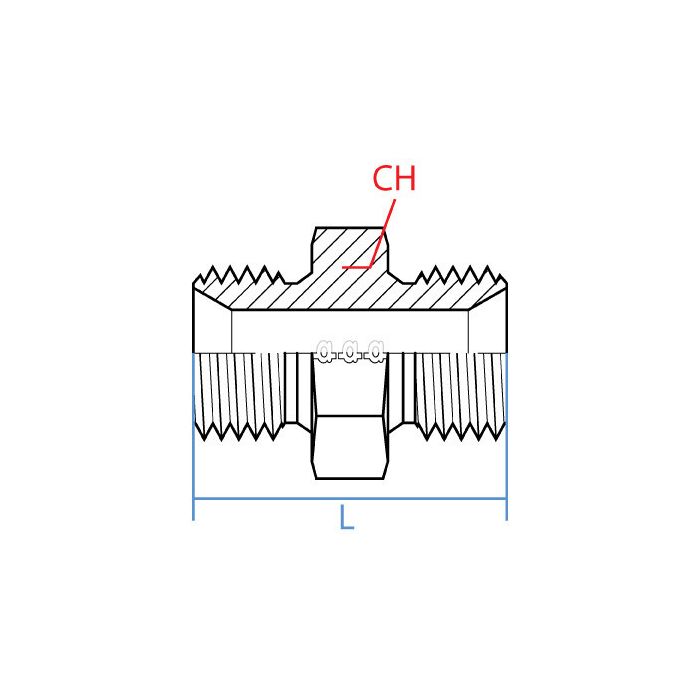

CH Width 22mm	L Length 33.1mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 3/8 - 19	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Bspp	Side 2 Callout M16 X 1.5	Side 2 Gender M	Side 2 Size 16mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9004-06-16	Product Weight 0.99 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a metric port on my hydraulic block that's M16 x 1.5 and need to tie into a BSPP line, this the right adapter for that?

Question by: Todd S on Oct 25, 2025, 9:37 PM

That's exactly the crossover this fitting handles. One end is 3/8" Male BSPP and the other is M16 x 1.5 Male Metric, so it bridges those two thread standards in a single straight adapter. Both sides are male, so you'd be threading into female ports on your existing components. It's made by Adaptall out of steel, and at 33.1mm long with a 22mm wrench width, it's compact enough to fit into tight hydraulic connections layouts without a lot of fuss.

Answer by: Customer Support on Oct 27, 2025, 6:33 AM
