Male Bspp X Male Metric 9004-04-16

Specifications

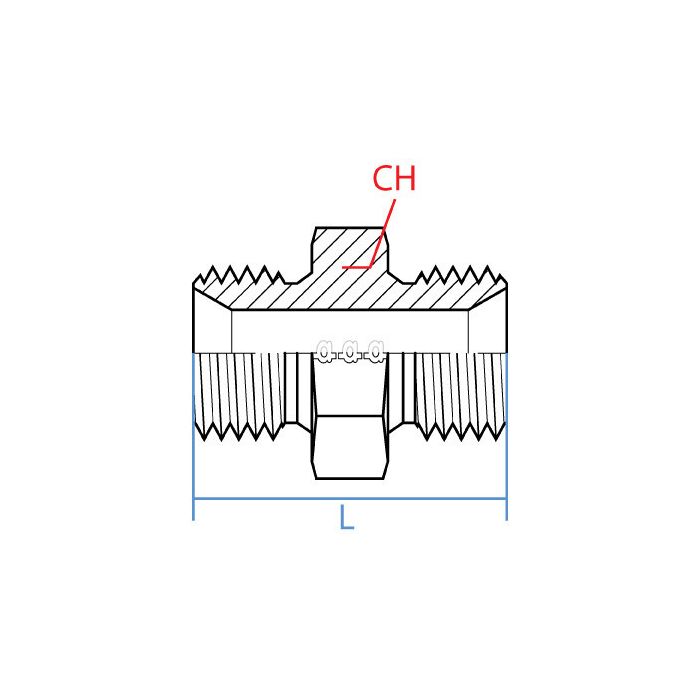

CH Width 22mm	L Length 31mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1/4 - 19	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Bspp	Side 2 Callout M16 X 1.5	Side 2 Gender M	Side 2 Size 16mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9004-04-16	Product Weight 0.99 lbs

Product Questions & Answers 3

Product Questions & Answers

What's the wrench size needed for tightening this fitting?

Question by: Darryl P on Jun 18, 2025, 2:01 PM

The 22mm CH width is designed to fit standard tooling for both installing and removing this adapter.

Answer by: Customer Support on Jun 19, 2025, 8:53 PM

Got a hydraulic line with an M16 x 1.5 port on one end and a G 1/4-19 BSPP port on the other, will this adapter bridge those two without needing anything else in between?

Question by: Tammy H on Jul 8, 2025, 9:19 AM

That's what this fitting does. One end is G 1/4-19 BSPP male and the other is M16 x 1.5 metric male, so it connects those two thread standards directly with no additional fittings required. Both ends are male, so you'd be threading each side into female ports on your lines or components. The straight profile keeps everything in-line, which helps in tight spaces.

Answer by: Customer Support on Jul 9, 2025, 9:50 PM

trying to hook a G 1/4-19 port to an M16 x 1.5 port. is this the right adapter?

Question by: Jerry S on Apr 3, 2026, 11:29 AM

For that mix of threads, yes. One end is a male BSPP G 1/4-19 and the other end is a male metric M16 x 1.5, so it’s meant to join those two standards in the same hydraulic circuit.

Answer by: Customer Support on Apr 5, 2026, 6:13 AM
