Male Bspp X Male Metric 9004-04-14

Specifications

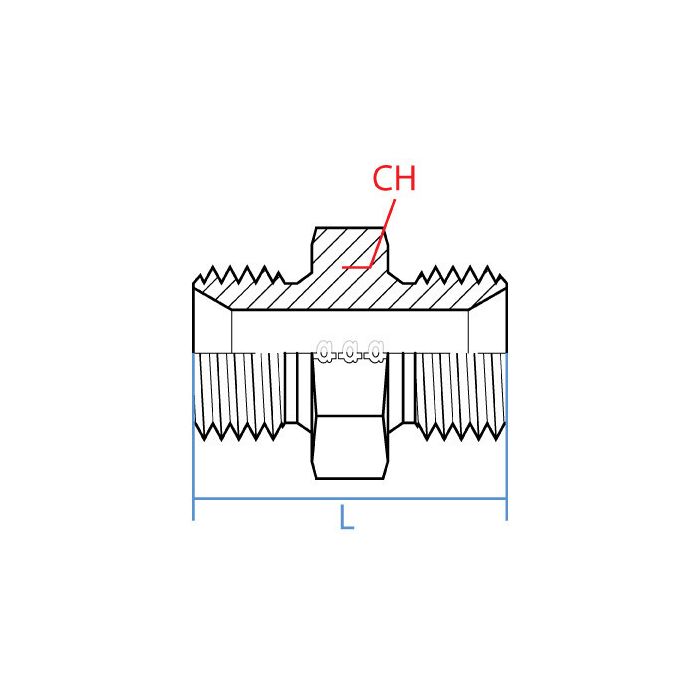

CH Width 19mm	L Length 29.9mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1/4 - 19	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Bspp	Side 2 Callout M14 X 1.5	Side 2 Gender M	Side 2 Size 14mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9004-04-14	Product Weight 0.06 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to hook a G 1/4-19 port to an M14 x 1.5 line, is this the right adapter?

Question by: Curt R on Aug 6, 2025, 9:08 AM

For that thread changeover, it matches up as a straight steel adapter with a G 1/4-19 BSPP male on one end and an M14 x 1.5 metric male on the other.

Answer by: Customer Support on Aug 7, 2025, 10:55 AM

Will this here adapter work to hook up somethin' with a G 1/4 - 19 fitting to somethin' that takes M14 X 1.5?

Question by: Darryl E on Oct 12, 2025, 7:06 PM

This adapter's got you covered for connecting a G 1/4 - 19 male thread to an M14 X 1.5 male thread. It's made to bridge those two different systems directly.

Answer by: Customer Support on Oct 14, 2025, 6:49 AM

Got a line on my equipment that's got a metric port, M14 x 1.5, and I need to tie it into something with a G 1/4-19 BSPP fitting. This adapter do that straight shot, no reducers or extra pieces?

Question by: Hubert C on Aug 30, 2025, 12:12 PM

That's what this one does. One end is G 1/4-19 BSPP male, the other is M14 x 1.5 metric male, and it runs straight through with no offsets or angles. Steel construction, so it holds up in working conditions without babying. At just under 30mm long, it won't eat up a lot of space in a tight hydraulic connections setup either.

Answer by: Customer Support on Sep 1, 2025, 6:24 AM
