Bspp Male X Bspt Male Nipple 9003-16-12

Specifications

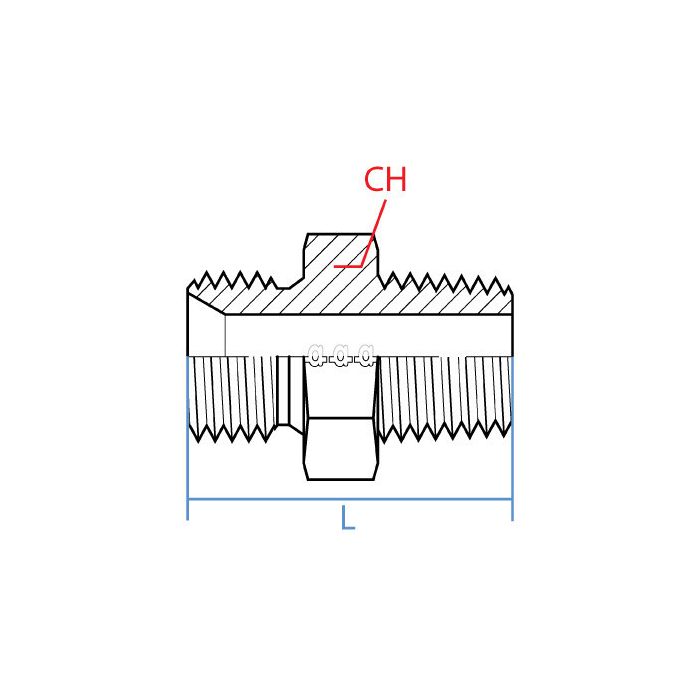

CH Width 41mm	L Length 46.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1 - 11	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Bspp	Side 2 Callout R 3/4 - 14	Side 2 Gender M	Side 2 Size 3/4"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9003-16-12	Product Weight 0.99 lbs

Product Questions & Answers 3

Product Questions & Answers

got a 1 inch BSPP male on one side and need to step down to 3/4 BSPT male. is that what this nipple does?

Question by: Cody Y on Sep 10, 2025, 7:33 PM

It adapts between those two thread types in a straight steel nipple. One end is 1 inch BSPP male with a G 1 - 11 callout, and the other end is 3/4 inch BSPT male with an R 3/4 - 14 callout.

Answer by: Customer Support on Sep 12, 2025, 6:50 AM

Got a piece of equipment running a 1-inch BSPP port and I need to step down to a 3/4 BSPT connection on the other end. This nipple gonna cover that?

Question by: Todd T on Nov 1, 2025, 1:12 PM

That's exactly what this fitting handles. One end is 1-inch male BSPP (G 1 - 11) and the other is 3/4-inch male BSPT (R 3/4 - 14), so it bridges those two thread standards in a straight configuration. Both ends are male, so you'd be threading each side into a female port or coupling on your equipment. Steel construction, 41mm wrench flat, and just under 47mm overall length.

Answer by: Customer Support on Nov 3, 2025, 6:49 AM

Will this fitting hold up alright in an oily environment, or do I need something more heavy-duty?

Question by: Dale S on Feb 27, 2026, 10:03 AM

This steel fitting should work fine for most hydraulic applications. Just make sure the oil is compatible with steel to prevent any corrosion over time.

Answer by: Customer Support on Mar 1, 2026, 6:12 AM
