Mjic X Mbspp Cw Washer&O-Ring

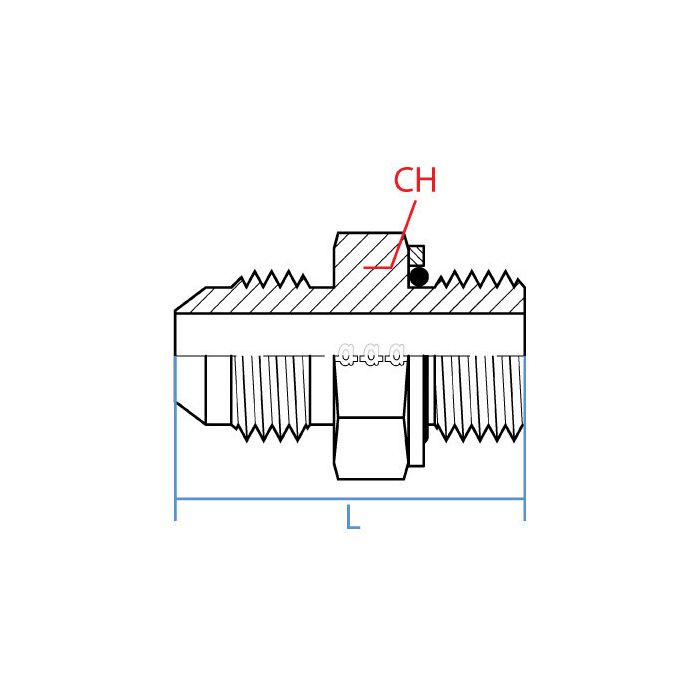

CH Width 41mm	L Length 53.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-5/16 - 12 UN	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Jic	Side 2 Callout G 1 - 11	Side 2 Gender M	Side 2 Size 1"	Side 2 Type Bspp	Alternate Part Numbers Alternate Part Number MI-02205728, Alternate Part Number MINO-03671X84597	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9002-16-16	Product Weight 0.55 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a line running JIC on one end and BSPP on the other, this fitting gonna bridge that gap without needing extra adapters in between?

Question by: Clint W on Feb 22, 2026, 7:19 AM

That's exactly what it handles. One side is a male 1-5/16-12 UN JIC thread, the other is a male G 1-11 BSPP thread, both in 1-inch size. The washer and O-ring are already built into the fitting, so you get a sealed connection at the BSPP side without hunting down separate sealing hardware. Steel construction, straight configuration, no moving parts to fuss with.

Answer by: Customer Support on Feb 23, 2026, 4:16 PM
