Mjic X Mbspp Cw Washer&O-Ring 9002-10-08

Specifications

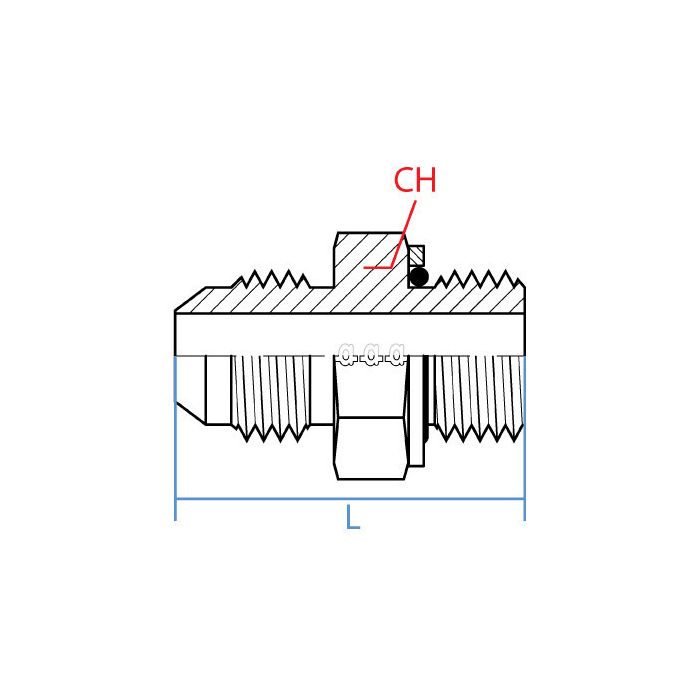

CH Width 30mm	L Length 43.6mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/8 - 14 UNF	Side 1 Gender M	Side 1 Size 5/8"	Side 1 Type Jic	Side 2 Callout G 1/2 - 14	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Bspp	Alternate Part Numbers Alternate Part Number 9002-1008, Alternate Part Number FMC102-1981, Alternate Part Number MI-02205722, Alternate Part Number MINO-03671X84591	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9002-10-08	Product Weight 0.20 lbs

Product Questions & Answers 2

Product Questions & Answers

So this here adapter, it's steel, right? Wonderin' how well it holds up outside.

Question by: Kurt H on Apr 7, 2026, 1:10 PM

Yes, the adapter is made of steel, which offers good durability for industrial use. However, the product information doesn't specify any weather or corrosion resistance, so consider environmental factors in your application.

Answer by: Customer Support on Apr 9, 2026, 8:42 AM

Got a machine running BSPP fittings on the hydraulic block and need to tie into a JIC line, this straight adapter gonna work for that kind of crossover?

Question by: Carl T on Jul 1, 2025, 8:36 PM

That's the kind of job this fitting handles. One end is a 7/8-14 UNF male JIC, the other is a G 1/2-14 male BSPP, so it bridges those two thread standards in a single piece. The washer and O-ring are included and seat against the BSPP side to keep things sealed up tight. Steel construction means it holds up in real working conditions, not just bench testing.

Answer by: Customer Support on Jul 3, 2025, 10:01 AM
