Mjic X Mbspp C/W Washer&O-Ring 9002-04-06

Specifications

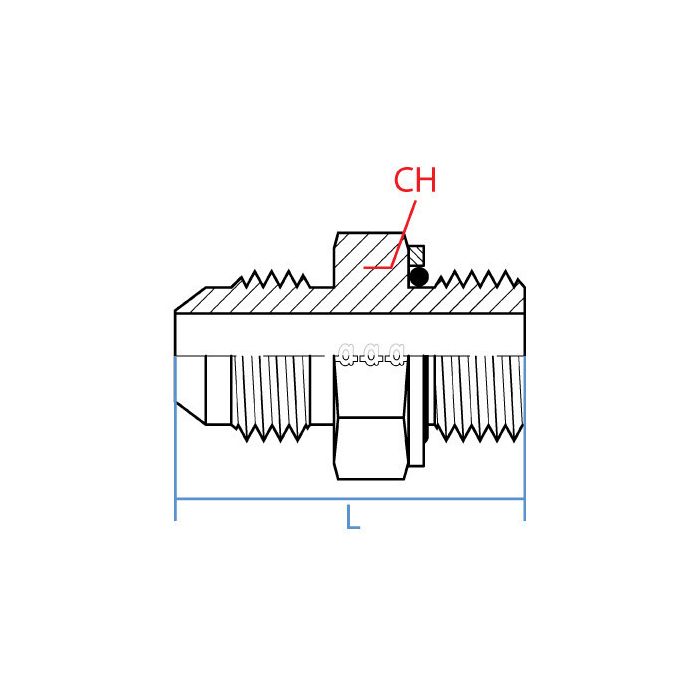

CH Width 24mm	L Length 35.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout G 3/8 - 19	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9002-04-06	Product Weight 0.10 lbs

Product Questions & Answers 3

Product Questions & Answers

got a hose end that’s 7/16-20 JIC male, will this adapter mate up right?

Question by: Janet R on Apr 21, 2025, 7:27 PM

Side 1 on this piece is a 7/16-20 UNF male JIC in the 1/4 inch size, and side 2 is a G 3/8-19 male BSPP in the 3/8 inch size, so it is meant to bridge those two thread standards in a straight adapter.

Answer by: Customer Support on Apr 23, 2025, 6:22 AM

Will this fitting work with both JIC and BSPP setups, or do I need different adapters for each?

Question by: Johnny H on Jan 12, 2026, 5:25 PM

It's designed with a 7/16 - 20 UNF male JIC on one side and a G 3/8 - 19 male BSPP on the other, so it'll handle both those connection types directly without needing extra adapters.

Answer by: Customer Support on Jan 13, 2026, 6:53 PM

Got a machine running JIC fittings on one end but the hydraulic supply line coming off the pump is BSPP, does this adapter handle that kind of crossover, or do I need something else in between?

Question by: Freddie R on Jun 28, 2025, 2:41 PM

That crossover is exactly what this fitting is built for. One end is a 7/16-20 UNF male JIC and the other is a G 3/8-19 male BSPP, so it connects those two thread standards directly with no additional adapters needed. The washer and O-ring are included and provide the sealing on the BSPP side, which is standard practice for that thread type.

Answer by: Customer Support on Jun 30, 2025, 9:45 AM
