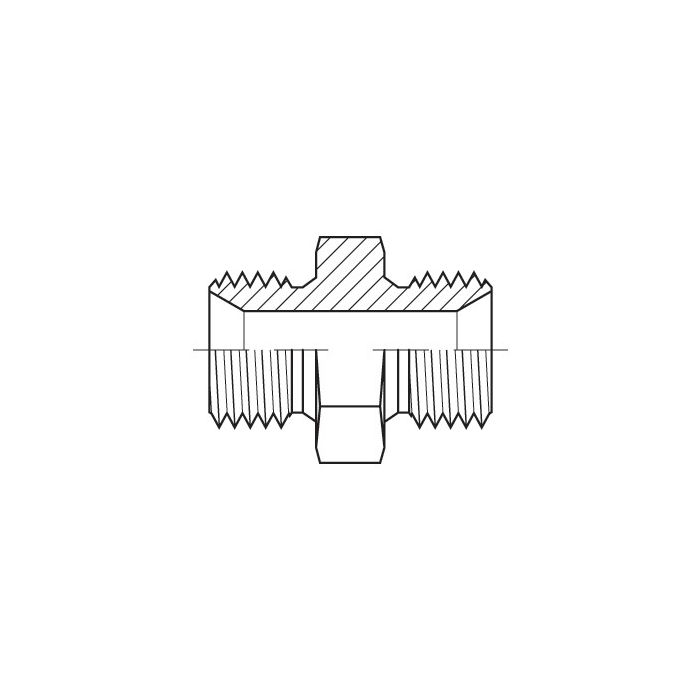

Male Metric X Male Metric 9001-24-22

Specifications

CH Width 30mm	L Length 47.2mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M24 X 1.5	Side 1 Gender M	Side 1 Size 24mm	Side 1 Type Metric	Side 2 Callout M22 X 1.5	Side 2 Gender M	Side 2 Size 22mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9001-24-22	Product Weight 0.99 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to hook two metric ports together, is this one M24 x 1.5 on one end and M22 x 1.5 on the other?

Question by: Hubert G on Dec 4, 2025, 6:34 PM

For connecting two female metric ports with different sizes, it gives you a male M24 x 1.5 on Side 1 and a male M22 x 1.5 on Side 2.

Answer by: Customer Support on Dec 6, 2025, 6:16 AM

Got a line coming off a hydraulic block with M24 x 1.5 male threads and I need to step it down to hook up to a M22 x 1.5 male port. this fitting do that job?

Question by: Earl G on Sep 10, 2025, 3:30 PM

Exactly what it's built for. One end is M24 x 1.5 male and the other is M22 x 1.5 male, so you can bridge those two thread sizes in a straight run without any additional adapters in between. Both are metric with a 1.5 pitch, so as long as your ports match those callouts, you're good to go.

Answer by: Customer Support on Sep 11, 2025, 7:17 PM

Reckon this'll fit if my current fitting's got a M22 and a M24 metric thread?

Question by: Brenda S on Jul 20, 2025, 12:40 PM

This straight steel Adaptall fitting has a M24 X 1.5 male metric thread on one side and a M22 X 1.5 male metric thread on the other, so it should be a direct replacement.

Answer by: Customer Support on Jul 21, 2025, 8:54 PM
