Bspp Nipple 9000-12-04

Specifications

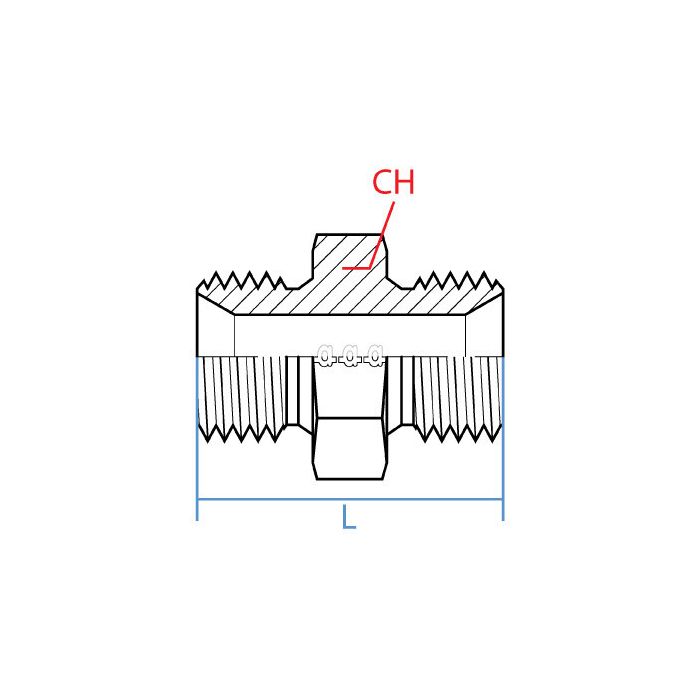

CH Width 32mm	L Length 40mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 3/4 - 14	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Bspp	Side 2 Callout G 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9000-12-04	Product Weight 0.20 lbs

Product Questions & Answers 3

Product Questions & Answers

Will this here nipple work to hook up different sized BSPP threads?

Question by: Jimmy M on Nov 20, 2025, 10:25 AM

Yes sir, this BSPP nipple is made to connect two male BSPP threaded ports that are different sizes. One side's a G 3/4 - 14, and the other is a G 1/4 - 19.

Answer by: Customer Support on Nov 22, 2025, 6:18 AM

Got a hydraulic block with a 3/4 BSPP port that needs to feed into a 1/4 BSPP line, will this nipple bridge those two sizes straight inline without needing extra fittings?

Question by: Tammy T on Dec 7, 2025, 6:37 AM

That's exactly what it's built for. One end is G 3/4-14 and the other is G 1/4-19, both male BSPP, so it connects those two different port sizes in a single straight fitting with no additional adapters needed. The body is steel and runs 40mm long, so it stays pretty compact in tight hydraulic connections situations.

Answer by: Customer Support on Dec 8, 2025, 4:41 PM

got a 3/4" BSPP port on one side and a 1/4" BSPP on the other. is this the little reducer nipple that ties those two together?

Question by: Danny P on Oct 2, 2025, 8:37 AM

Made for exactly that hookup, it is a straight male to male BSPP reducing nipple with G 3/4 - 14 threads on Side 1 and G 1/4 - 19 threads on Side 2.

Answer by: Customer Support on Oct 4, 2025, 6:24 AM
