Bspp Nipple 9000-08-04

Specifications

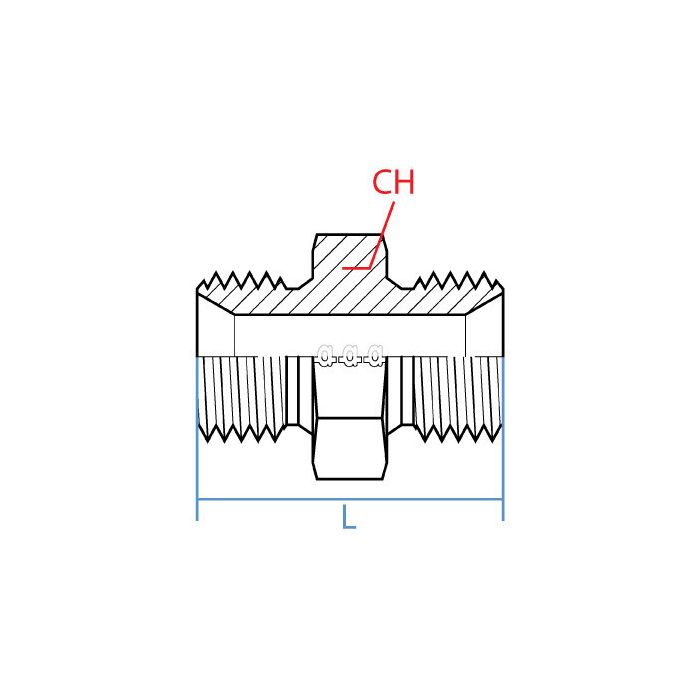

CH Width 27mm	L Length 35.4mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1/2 - 14	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Bspp	Side 2 Callout G 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9000-08-04	Product Weight 0.15 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to tie a 1/2" BSPP port into a 1/4" BSPP hose end. is this nipple the right deal for that?

Question by: Billy M on Nov 19, 2025, 1:13 PM

For stepping between two BSPP male sizes, it matches that setup. One end is G 1/2 - 14 male BSPP and the other end is G 1/4 - 19 male BSPP, in a straight steel nipple.

Answer by: Customer Support on Nov 20, 2025, 3:03 PM

got a hydraulic line running G 1/2 on one end and G 1/4 on the other -- will this nipple bridge that gap or do I need something else in between?

Question by: Terry M on Jun 18, 2025, 11:27 AM

That's exactly what this fitting handles. One side is threaded G 1/2 - 14 BSPP and the other is G 1/4 - 19 BSPP, so it steps down between those two sizes in a single piece. Both threads are male, so you'd be connecting it between two female BSPP ports. No additional adapter needed as long as your ports match those thread specs.

Answer by: Customer Support on Jun 20, 2025, 6:03 AM

Reckon this'll fit my setup? Got BSPP fittings, but one's 1/2" and the other's 1/4".

Question by: Frank C on Dec 3, 2025, 12:20 PM

This BSPP nipple is designed to connect two different sized BSPP fittings, specifically a 1/2" BSPP to a 1/4" BSPP. So, it should do the trick.

Answer by: Customer Support on Dec 5, 2025, 8:45 AM
