Bspp Nipple 9000-04-02

Specifications

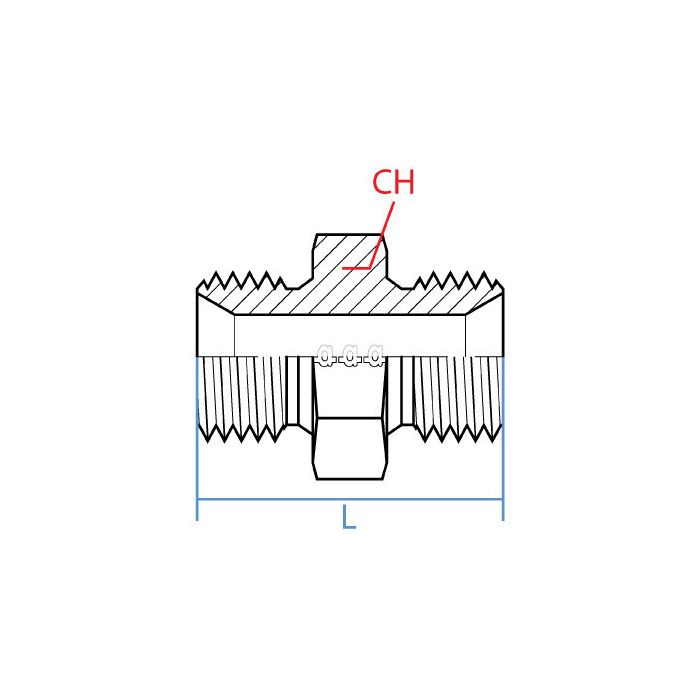

CH Width 19mm	L Length 29.3mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1/4 - 19	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Bspp	Side 2 Callout G 1/8 - 28	Side 2 Gender M	Side 2 Size 1/8"	Side 2 Type Bspp	Alternate Part Numbers Alternate Part Number MI-02558113, Alternate Part Number MINO-03671X50002	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9000-04-02	Product Weight 0.05 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to swap a fitting on a small hydraulic line, is this nipple male bsp on both ends or what

Question by: Dean M on Feb 14, 2026, 12:05 PM

Both ends are BSPP male threads. One side is G 1/4 - 19 male and the other side is G 1/8 - 28 male, so it is a straight male-to-male BSPP nipple.

Answer by: Customer Support on Feb 15, 2026, 9:48 PM

So this has a 1/4" BSPP on one side and a 1/8" BSPP on the other? Just want to make sure I'm reading it right.

Question by: Rod W on Jan 25, 2026, 9:34 AM

That's correct. This nipple features a G 1/4 - 19 male connection on one end and a G 1/8 - 28 male connection on the other.

Answer by: Customer Support on Jan 26, 2026, 11:22 AM

What's the size difference between the two ends on this nipple? Trying to figure out if it steps down or if both sides are the same.

Question by: Lyle J on Dec 18, 2025, 12:57 PM

One end is a G 1/4 - 19 male BSPP connection and the other is a G 1/8 - 28 male BSPP connection, so yes, it does step down. You're going from a quarter-inch side to an eighth-inch side. Both ends are male, and the overall length runs 29.3mm with a 19mm width across the fitting. Good reducer nipple when you need to drop a BSPP line down a size without a lot of extra hardware in the way.

Answer by: Customer Support on Dec 19, 2025, 2:40 PM
