Adaptall 90* Mjic X Mbspt Elbow 2616453

Specifications

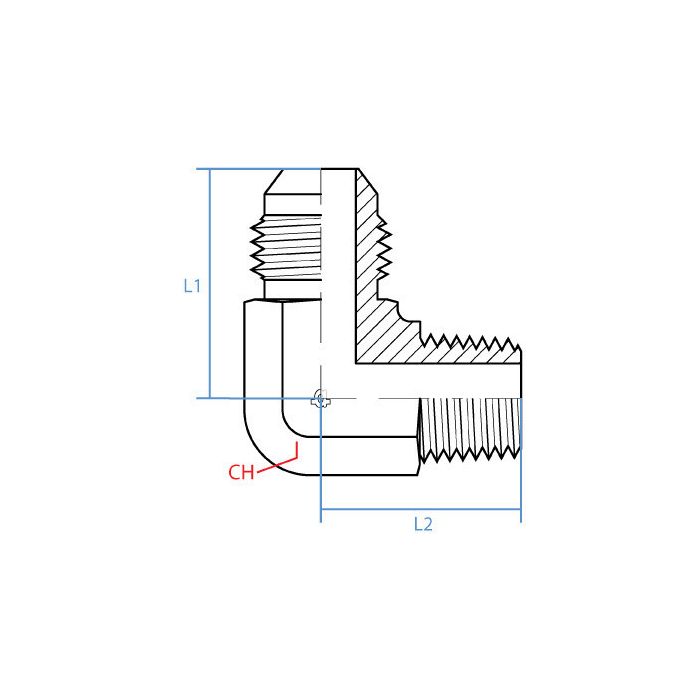

CH Width 22mm	L1 Length 34.8mm	L2 Length 32.6mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout R 1/2 - 14	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9063-08-08	Product Weight 0.30 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to swap an adapter on a skid steer, are the threads on this elbow 1/2 jic on one side and 1/2 bspt on the other?

Question by: Kirk W on Jul 10, 2025, 8:27 PM

On the JIC side you are getting a 1/2 inch male JIC with a 3/4 to 16 UNF thread. The other end is a 1/2 inch male BSPT with an R 1/2 to 14 thread, so it is meant to join a female JIC port to a female BSPT port.

Answer by: Customer Support on Jul 12, 2025, 3:23 PM

Got a pump port that's female BSPT and a valve block with a female JIC port, would this elbow tie those two together directly?

Question by: Johnny B on Sep 7, 2025, 12:42 PM

Yeah, that's exactly what it's built for. Both ends are male, one being a 1/2" Male JIC with a 3/4-16 UNF thread and the other a 1/2" Male BSPT running R 1/2-14. As long as your pump port accepts a male BSPT and your valve block takes a male JIC, this adapter goes right between them without any additional fittings in the middle.

Answer by: Customer Support on Sep 8, 2025, 6:54 PM

Will this elbow work to connect something with a JIC fitting to something with a BSPT, or am I misunderstanding?

Question by: Brett T on Apr 16, 2025, 7:51 PM

Yes, that's precisely what it's for. It connects a 1/2" Male JIC (3/4–16 UNF thread) to a 1/2" Male BSPT (R 1/2–14 thread).

Answer by: Customer Support on Apr 18, 2025, 6:45 AM
