90* Male Jic X Female Bspp

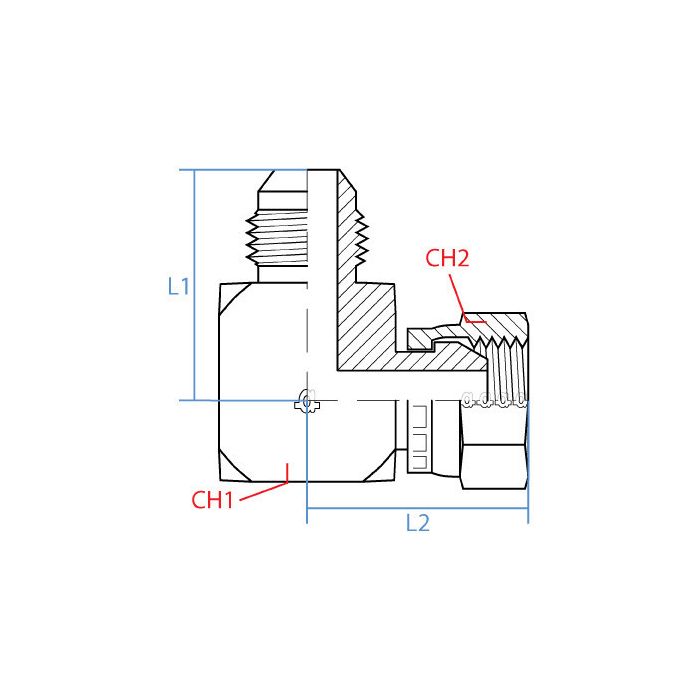

CH1 Width 19mm	CH2 Width 22mm	L1 Length 30mm	L2 Length 33mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout G 3/8 - 19	Side 2 Gender F	Side 2 Size 3/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9056-06-06	Product Weight 0.22 lbs

Product Questions & Answers 2

Product Questions & Answers

fitting's got a male JIC on one end and female BSPP on the other -- that 90 degree angle, is that gonna let me change direction right at the connection point or do I still need a separate elbow somewhere upstream?

Question by: Patty G on Apr 26, 2025, 4:26 PM

Right at the connection point is exactly where the direction change happens. The 90 degree elbow geometry is built into the fitting itself, so you get the angle transition and the thread conversion in one piece. No separate elbow needed. The male JIC side is 9/16-18 UNF and the female BSPP side is G 3/8-19, both at 3/8 inch size, so as long as those threads match up on your lines you are good to go in one shot.

Answer by: Customer Support on Apr 28, 2025, 6:58 AM

What's the wrench size needed for each side of this fitting?

Question by: Bonnie W on Jun 1, 2025, 5:50 PM

You'll need a 19mm wrench for Side 1 and a 22mm wrench for Side 2.

Answer by: Customer Support on Jun 2, 2025, 9:47 PM
