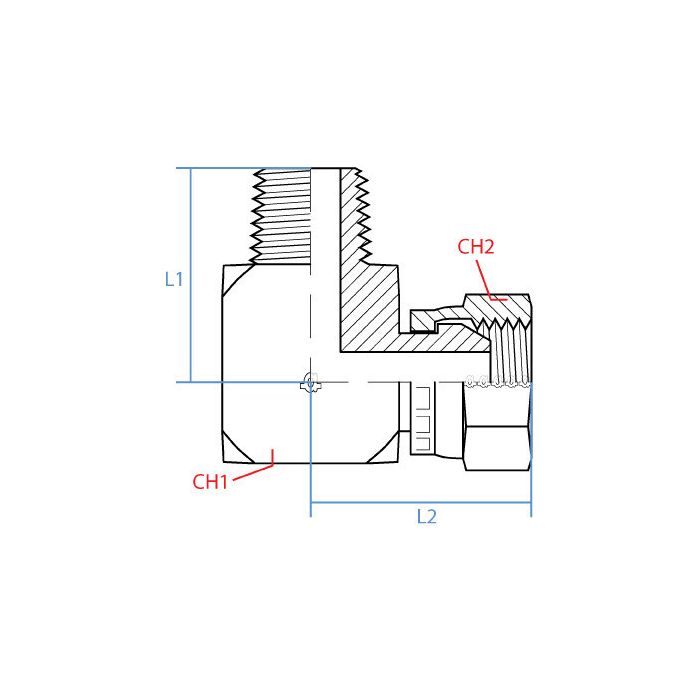

90* Male Bspt X Female Bspp

CH1 Width 22mm	CH2 Width 27mm	L1 Length 33mm	L2 Length 31mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout R 1/2 - 14	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Bspt	Side 2 Callout G 1/2 - 14	Side 2 Gender F	Side 2 Size 1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9062-08-08	Product Weight 0.40 lbs

Product Questions & Answers 1

Product Questions & Answers

trying to swap a tapered 1/2 BSPT male into a port thats 1/2 BSPP female, is this the right elbow for that?

Question by: Tommy W on Jun 18, 2025, 8:50 PM

For a 90 degree turn between British thread types, this fitting matches a 1/2 inch male BSPT thread (R 1/2-14) on one side and a 1/2 inch female BSPP thread (G 1/2-14) on the other.

Answer by: Customer Support on Jun 20, 2025, 6:34 AM
