Adaptall 90* Male Bspp X Female Bspp 9060-32-32

Specifications

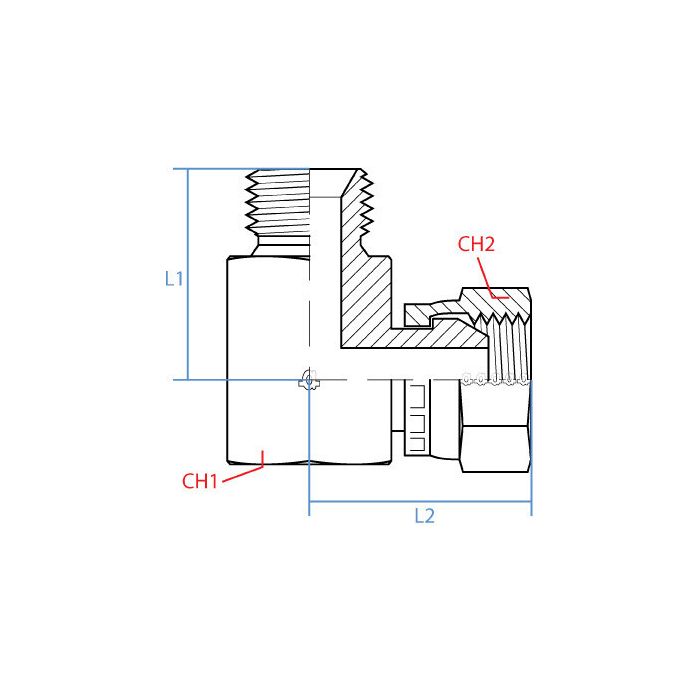

CH1 Width 63.5mm	CH2 Width 70mm	L1 Length 72mm	L2 Length 66mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout G 2 - 11	Side 1 Gender M	Side 1 Size 2"	Side 1 Type Bspp	Side 2 Callout G 2 - 11	Side 2 Gender F	Side 2 Size 2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9060-32-32	Product Weight 4.66 lbs

Product Questions & Answers 2

Product Questions & Answers

Got a line coming off a pump that needs to turn 90 degrees before hooking into an existing female BSPP port, this fitting work for that kind of setup?

Question by: Dustin B on Sep 16, 2025, 9:03 AM

Yeah, that's exactly the kind of situation this fitting handles. One end is a 2-inch male BSPP that threads into whatever you're connecting from, and the other end is a 2-inch female BSPP to receive the incoming line or component. The 90-degree elbow lets you redirect flow without needing extra adapters or a fabricated bend. Both sides carry the same G 2-11 thread spec, so as long as your existing ports are standard BSPP, you're good to go.

Answer by: Customer Support on Sep 18, 2025, 6:59 AM

Will this fitting hold up if I'm using it for a high-pressure hydraulic setup?

Question by: Rex G on May 13, 2025, 6:27 AM

Crafted from steel, this fitting is made for durability in demanding hydraulic environments.

Answer by: Customer Support on May 15, 2025, 6:10 AM
