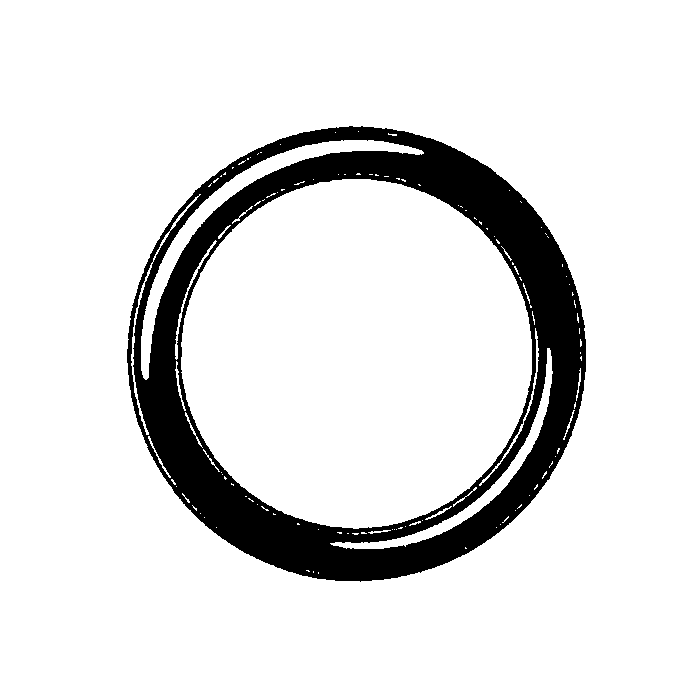

90 Durometer Buna-N O-Ring, Inch OD, 1-1/2 Inch ID, 0.14 Inch Width

Actual I.D. 1.48	Actual O.D. 1.76	Actual Width 0.139 in	Dash Size -222	Brand Hercules Sealing Products	Brand Hercules Sealing Products	Pack Size 1.00	UOM EA	Nominal I.D. (in) 1-1/2	Nominal O.D. 1-3/4	Nominal Width 1/8	Package Qty. 19	Supplier Part Number 568-222-90D	Alternate Part Numbers Alternate Part Number 2-222/N90, Alternate Part Number 2-222N90, Alternate Part Number 568-222-90D, Alternate Part Number C1CE73, Alternate Part Number FMC107-0951-004, Alternate Part Number MI-08740429, Alternate Part Number MINO-00407X90429	Product Weight 0.01 lbs

Product Questions & Answers 1

Product Questions & Answers

trying to replace an old -222 o-ring, is this the 90 duro buna-n one with the right size?

Question by: Rick W on Apr 6, 2026, 3:58 PM

For a dash size -222 in 90 durometer Buna-N, it matches the standard callout and the actual measured dimensions are 1.762 inch OD, 1.484 inch ID, and 0.139 inch width. It is also cross-referenced under part numbers like 568-222-90D and C1CE73.

Answer by: Customer Support on Apr 7, 2026, 9:19 PM

Similar Products

Model Number	Dash Size	Nominal I.D. (in)	Nominal O.D.	Nominal Width	Actual I.D.	Actual O.D.	Actual Width	Package Qty.
A-219-90D	-219	1-5/16	1-9/16	1/8	1.296	1.574	0.139 in	19
A-012-90D	-012	3/8	1/2	1/16	0.364	0.504	0.07 in	34
A-014-90D	-014	1/2	5/8	1/16	0.489	0.629	0.07 in	34
A-210-90D	-210	3/4	1	1/8	0.734	1.012	0.139 in	25
A-212-90D	-212	7/8	1-1/8	1/8	0.859	1.137	0.139 in	25
A-214-90D	-214	1	1-1/4	1/8	0.984	1.262	0.139 in	23
A-222-90D	-222	1-1/2	1-3/4	1/8	1.484	1.762	0.139 in	19
A-225-90D	-225	1-7/8	2-1/8	1/8	1.859	2.137	0.139 in	2
