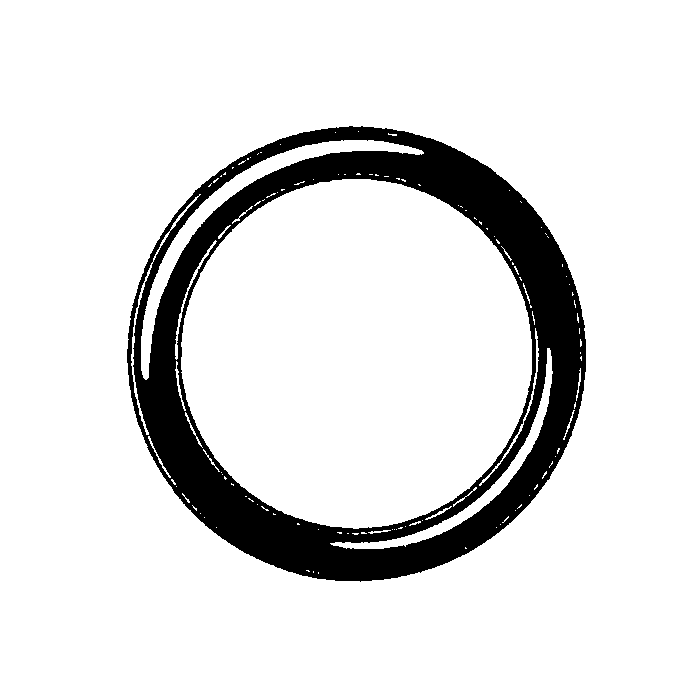

90 Durometer Buna-N O-Ring, Inch OD, 1 Inch ID, 0.14 Inch Width

Actual I.D. 0.98	Actual O.D. 1.26	Actual Width 0.139 in	Dash Size -214	Brand Hercules Sealing Products	Brand Hercules Sealing Products	Pack Size 1.00	UOM EA	Nominal I.D. (in) 1	Nominal O.D. 1-1/4	Nominal Width 1/8	Package Qty. 23	Supplier Part Number 568-214-90D	Alternate Part Numbers Alternate Part Number 2-214/N90, Alternate Part Number 568-214-90D, Alternate Part Number C1CE63, Alternate Part Number MI-08740420, Alternate Part Number MINO-00407X90420	Product Weight 0.01 lbs

Product Questions & Answers 1

Product Questions & Answers

got a cylinder on an old press that keeps weeping around the piston seal area and I'm pretty sure it takes a -214 o-ring. this the right one?

Question by: Rick J on Mar 27, 2026, 6:40 PM

A dash -214 is exactly what this is. The actual dimensions are 0.984 inch inner diameter and 1.262 inch outer diameter, with a width right at 0.139 inches. Those are your standard -214 sizes, so if your press was originally built to that dash number, this should drop right in. The 90 durometer Buna-N compound holds up well under hydraulic fluid, and the temperature range covers -40 up to 240 degrees F, which covers just about anything a press like that would see in normal shop conditions.

Answer by: Customer Support on Mar 29, 2026, 6:19 AM

Similar Products

Model Number	Dash Size	Nominal I.D. (in)	Nominal O.D.	Nominal Width	Actual I.D.	Actual O.D.	Actual Width	Package Qty.
A-219-90D	-219	1-5/16	1-9/16	1/8	1.296	1.574	0.139 in	19
A-012-90D	-012	3/8	1/2	1/16	0.364	0.504	0.07 in	34
A-014-90D	-014	1/2	5/8	1/16	0.489	0.629	0.07 in	34
A-210-90D	-210	3/4	1	1/8	0.734	1.012	0.139 in	25
A-212-90D	-212	7/8	1-1/8	1/8	0.859	1.137	0.139 in	25
A-214-90D	-214	1	1-1/4	1/8	0.984	1.262	0.139 in	23
A-222-90D	-222	1-1/2	1-3/4	1/8	1.484	1.762	0.139 in	19
A-225-90D	-225	1-7/8	2-1/8	1/8	1.859	2.137	0.139 in	2
