90* Din X Male Sae Orb Adj

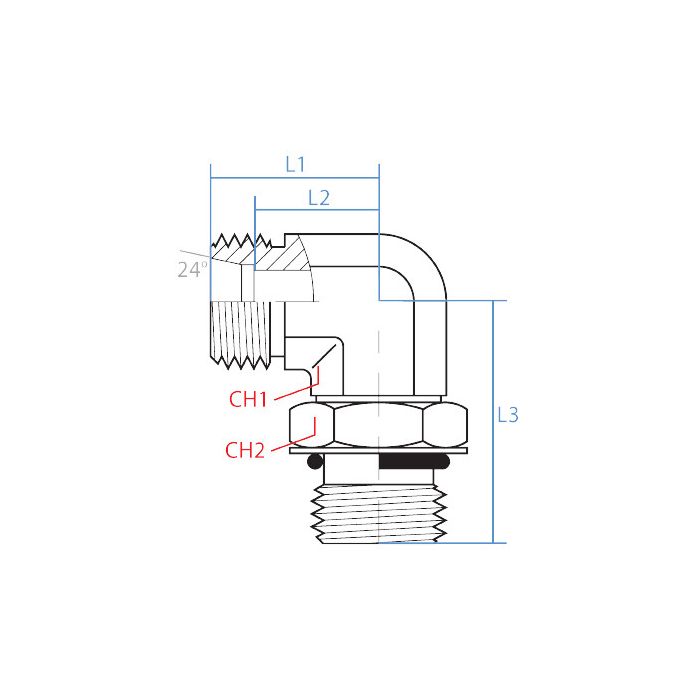

CH1 Width 12mm	CH2 Width 14mm	L1 Length 23mm	L2 Length 16mm	L3 Length 27mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M14 X 1.5	Side 1 Gender M	Side 1 Size S06	Side 1 Type Din Tube	Side 2 Callout 7/16 - 20 UNF	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Orb-Sae	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5077S-06-04	Product Weight 0.08 lbs

Product Questions & Answers

Will this fitting work with standard SAE ORB ports, or is there anything special about it?

Question by: Patty H on Mar 6, 2026, 1:00 PM

This adapter features a SAE ORB Male end in 7/16 - 20 UNF sizing, making it compatible with standard SAE ORB ports.

Answer by: Customer Support on Mar 8, 2026, 6:29 AM
