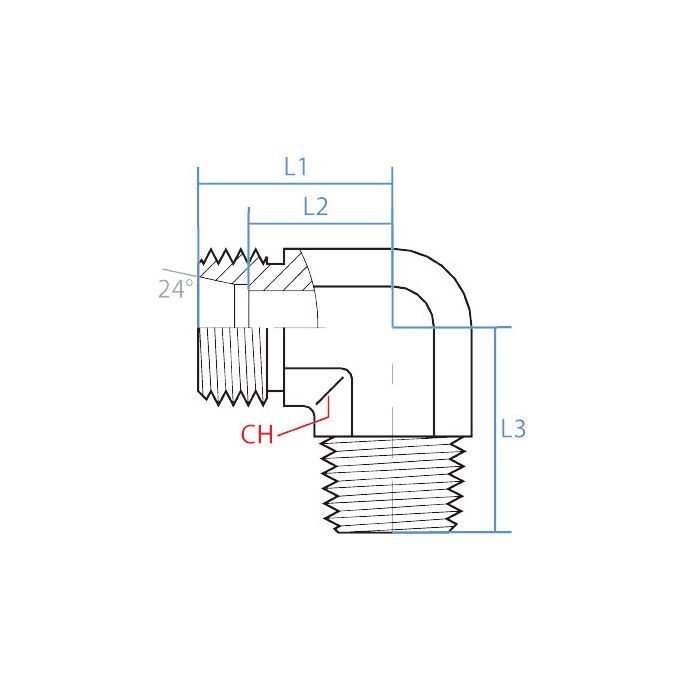

90* Din X Male Npt

Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M12 X 1.5	Side 1 Gender M	Side 1 Size L06	Side 1 Type Din Tube	Side 2 Callout 1/4 - 18 NPTF	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5070L-06-04	Product Weight 0.06 lbs

Product Questions & Answers

trying to swap out a fitting, is this the one that’s DIN M12 x 1.5 on one end and 1/4-18 NPTF male on the other?

Question by: Bobby S on Jan 30, 2026, 12:45 PM

For fit confirmation, the DIN side is an M12 x 1.5 male thread with an L06 tube size, and the other end is a 1/4 inch male thread at 1/4 to 18 NPTF.

Answer by: Customer Support on Jan 31, 2026, 1:51 PM
