Adaptall 90* Din X Male Metric Din 5069S-12-18

Specifications

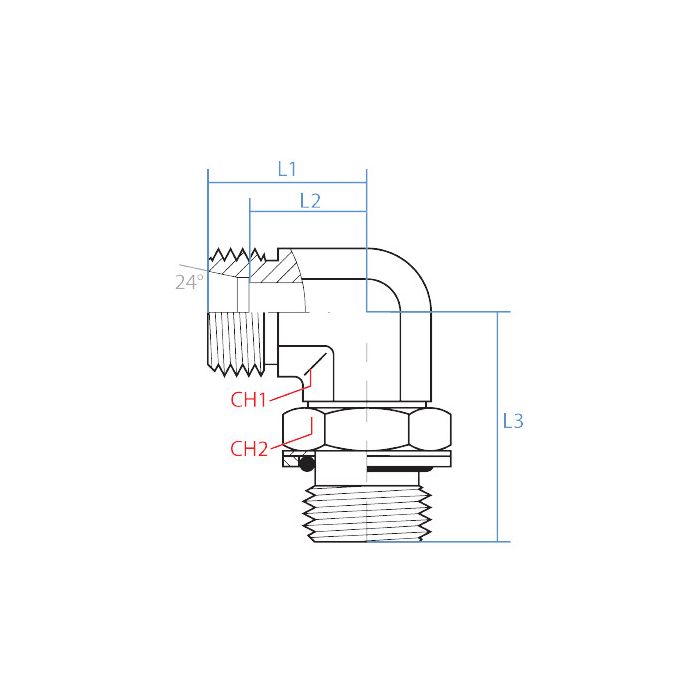

CH1 Width 19mm	CH2 Width 24mm	L1 Length 29mm	L2 Length 21.5mm	L3 Length 40mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M20 X 1.5	Side 1 Gender M	Side 1 Size S12	Side 1 Type Din Tube	Side 2 Callout M18 X 1.5	Side 2 Gender M	Side 2 Size 18mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5069S-12-18	Product Weight 0.26 lbs

Product Questions & Answers 2

Product Questions & Answers

got a tight spot on a hydraulic line, is this the 90 degree elbow that goes from M20 x 1.5 din tube over to M18 x 1.5 metric male?

Question by: Freddie M on Apr 6, 2026, 6:42 AM

For that setup, it matches those thread callouts. Side 1 is a DIN tube connection with an M20 x 1.5 male end (size S12), and side 2 is a metric M18 x 1.5 male end (18 mm). The 90° elbow shape is meant to help route the line in close quarters.

Answer by: Customer Support on Apr 8, 2026, 6:32 AM

what's the thread size on both ends of this fitting? got a M18 line on one side and need to confirm the other before I order

Question by: Eddie H on Jul 17, 2025, 5:43 PM

Side one runs M20 x 1.5 and side two is M18 x 1.5, so if you've got an M18 line on one end, that matches up with side two. The other end would need to connect to an M20 x 1.5 DIN tube port. Both sides are male, so keep that in mind when checking what you're mating to on each connection point.

Answer by: Customer Support on Jul 19, 2025, 1:17 PM
