90* Din X Male Metric Adj

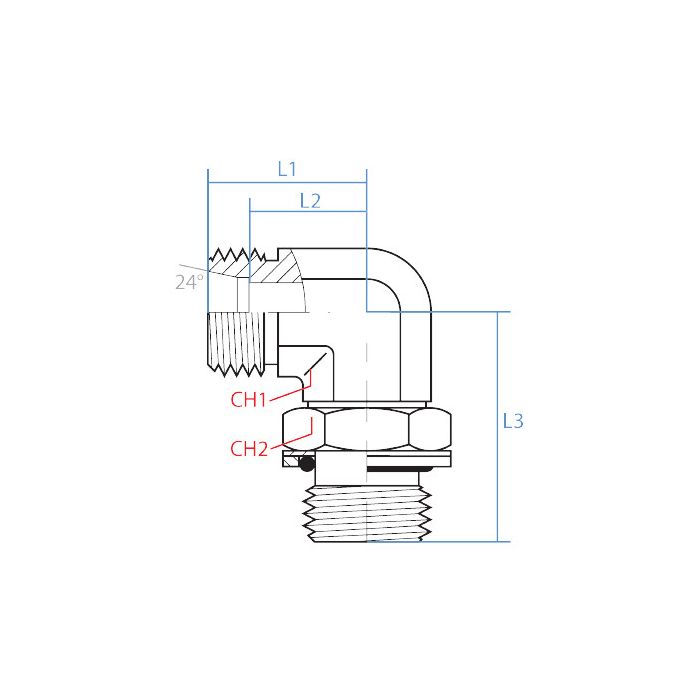

CH1 Width 12mm	CH2 Width 17mm	L1 Length 23mm	L2 Length 16mm	L3 Length 31.5mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M14 X 1.5	Side 1 Gender M	Side 1 Size S06	Side 1 Type Din Tube	Side 2 Callout M12 X 1.5	Side 2 Gender M	Side 2 Size 12mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5069S-06-12	Product Weight 0.13 lbs

Product Questions & Answers

What size wrench do I need for installing this thing?

Question by: Brent W on Jan 31, 2026, 10:22 AM

You'll need a 12mm wrench for the Ch1 width and a 17mm wrench for the Ch2 width on this fitting.

Answer by: Customer Support on Feb 1, 2026, 7:36 PM
