90* Din X Male Bspt Elbow

Both thread standards live on the same fitting, which is exactly the point of it. The DIN tube end runs M12 x 1.5 metric thread in an L06 size, and the opposite end is a 1/8" male BSPT port rated at R 1/8-28. So if you've got a metric DIN tube line that needs to tie into a valve, manifold, or actuator with a BSP-standard port, this elbow handles that transition without needing an additional adapter in the middle. The 90-degree angle keeps routing tight when you don't have room to run a straight line.

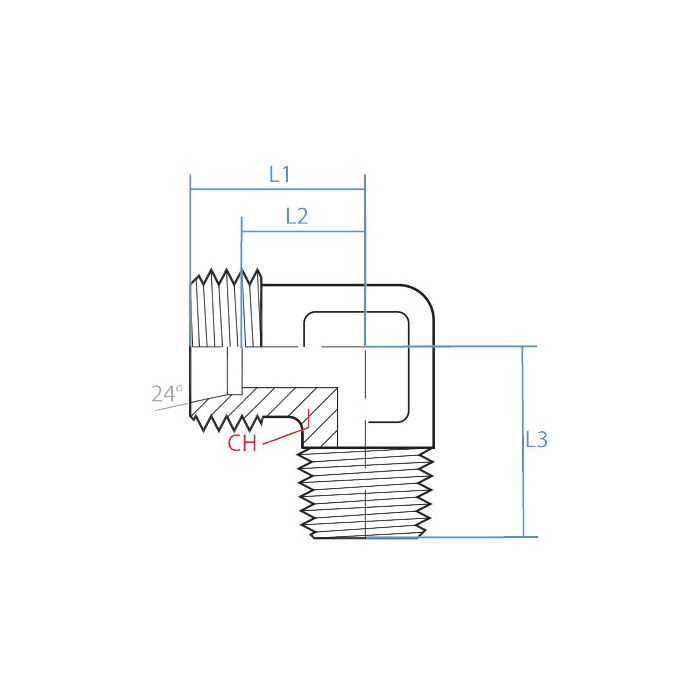

For tying those two standards together in a tight spot, it’s a 90 degree steel elbow with a DIN tube male end in M12 x 1.5 (L06) on one side and a male BSPT end in R 1/8-28 (1/8 inch) on the other.
