90* Din X Male Bspt Complete

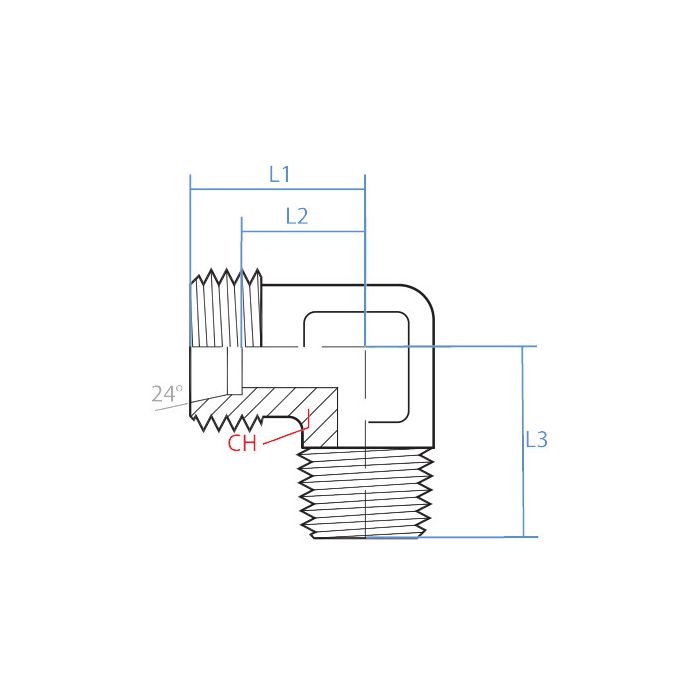

CH Width 12mm	L1 Length 20mm	L2 Length 14.5mm	L3 Length 17mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M12 X 1.0	Side 1 Gender M	Side 1 Size LL08	Side 1 Type Din Tube	Side 2 Callout R 1/8 - 28	Side 2 Gender M	Side 2 Size 1/8"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5063LL-08-02C	Product Weight 0.06 lbs

Product Questions & Answers

trying to swap a straight adapter out for an elbow, what threads are on each end of this one?

Question by: Ross B on Dec 7, 2025, 6:52 AM

On the DIN tube side it is M12 x 1.0 (LL08), and the outlet side is a male BSPT thread, R 1/8-28.

Answer by: Customer Support on Dec 8, 2025, 11:36 AM
