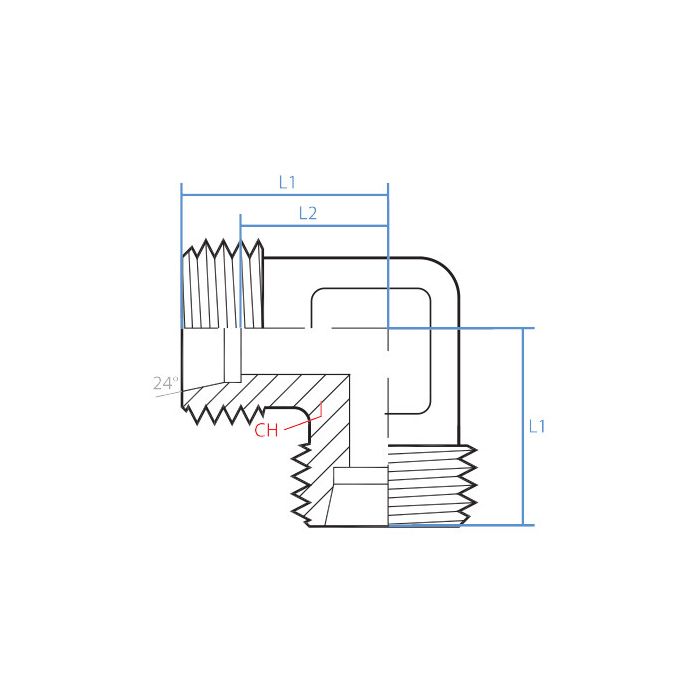

90* Din Union

CH Width 12mm	L1 Length 21mm	L2 Length 14mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M14 X 1.5	Side 1 Gender M	Side 1 Size L08	Side 1 Type Din Tube	Side 2 Callout M14 X 1.5	Side 2 Gender M	Side 2 Size L08	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5055L-08	Product Weight 0.07 lbs

Product Questions & Answers 1

Product Questions & Answers

Both sides on this fitting are the same thread, right? Just want to make sure I ain't gonna need some kind of adapter to hook it up on either end.

Question by: Hank P on Jan 17, 2026, 6:42 PM

Correct on both counts. Each side carries an L08 male DIN tube thread with an M14 x 1.5 callout, so the connection is fully symmetrical. You won't need any additional adapters at the joint, which keeps the assembly clean and straightforward.

Answer by: Customer Support on Jan 19, 2026, 7:30 AM
