90* Din Bulkhead Union

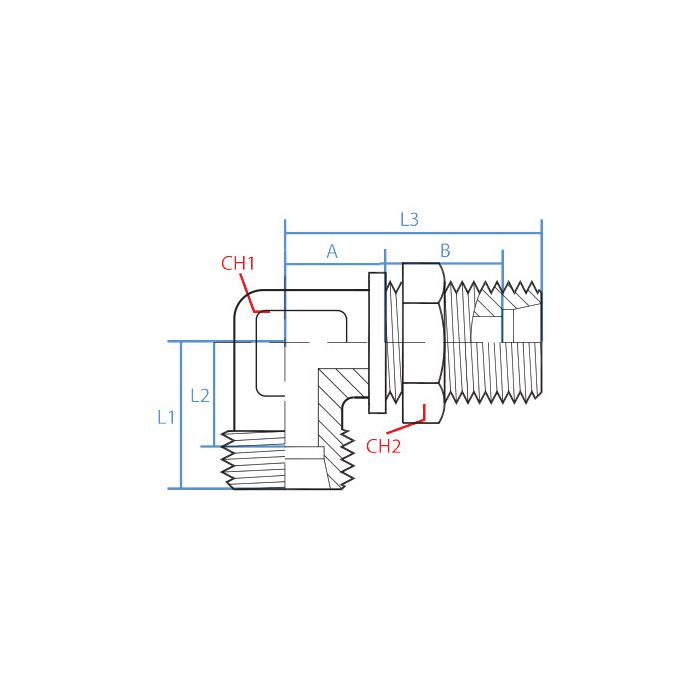

A Misc 14mm	B Misc 27mm	CH1 Width 12mm	CH2 Width 17mm	L1 Length 19mm	L2 Length 12mm	L3 Length 48mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M12 X 1.5	Side 1 Gender M	Side 1 Size L06	Side 1 Type Din Tube	Side 2 Callout M12 X 1.5	Side 2 Gender M	Side 2 Size L06	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5042L-06	Product Weight 0.13 lbs

Product Questions & Answers 2

Product Questions & Answers

both sides on this fitting are M12 x 1.5 DIN tube connections right? just want to make sure before I order

Question by: Ray M on Feb 9, 2026, 7:28 AM

Correct on both counts. Each side uses an M12 x 1.5 thread and connects to an L06 size DIN tube. The fitting is male on both ends, so as long as your tubing matches those specs, you're good to go.

Answer by: Customer Support on Feb 10, 2026, 10:11 AM

What's the width across the flats on both sides of this fitting? Gotta make sure my wrenches will fit.

Question by: Freddie B on Dec 16, 2025, 9:55 PM

You'll need a 12mm wrench for one side and a 17mm wrench for the other to properly tighten this union.

Answer by: Customer Support on Dec 18, 2025, 6:12 AM
