Brass Male Bspt X Hose Barb

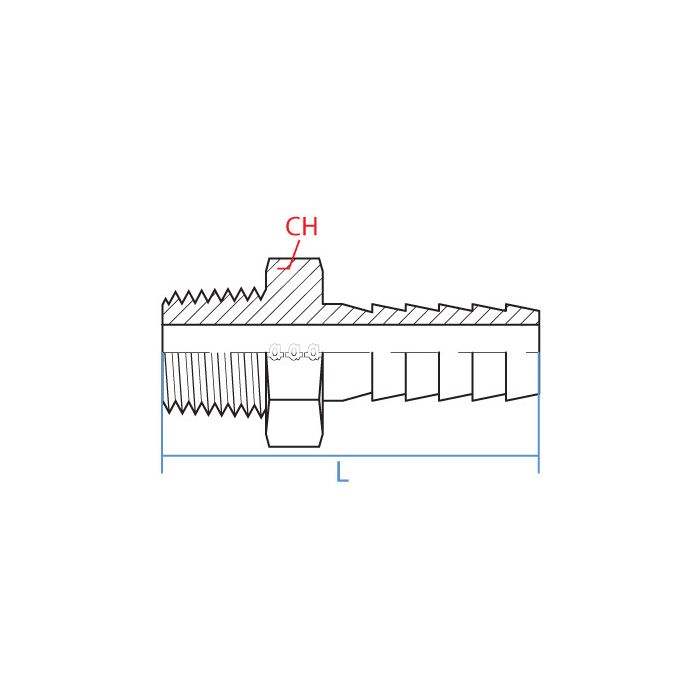

For tying a BSPT port into a hose line, this adapter gives you a 3/8 inch male BSPT thread on one end and a 3/8 inch hose barb on the other. The threaded side is R 3/8 - 19 and is meant to mate with a matching female BSPT port, then the barb end is sized for 3/8 inch hose.

Male BSPT threads on this fitting match up with female BSPT ports, so yes, it'll go straight in. The thread profile follows the British Standard Pipe Taper spec, which is what you'll find on a lot of industrial equipment, especially older or imported machinery. Just make sure your port is actually BSPT and not BSP parallel, since those look similar but aren't the same thread form.

This fitting is constructed from brass, which provides good durability and corrosion resistance in pneumatic systems. As long as the pressure and operating environment are within the capabilities of standard brass fittings, it should work fine for that application.
