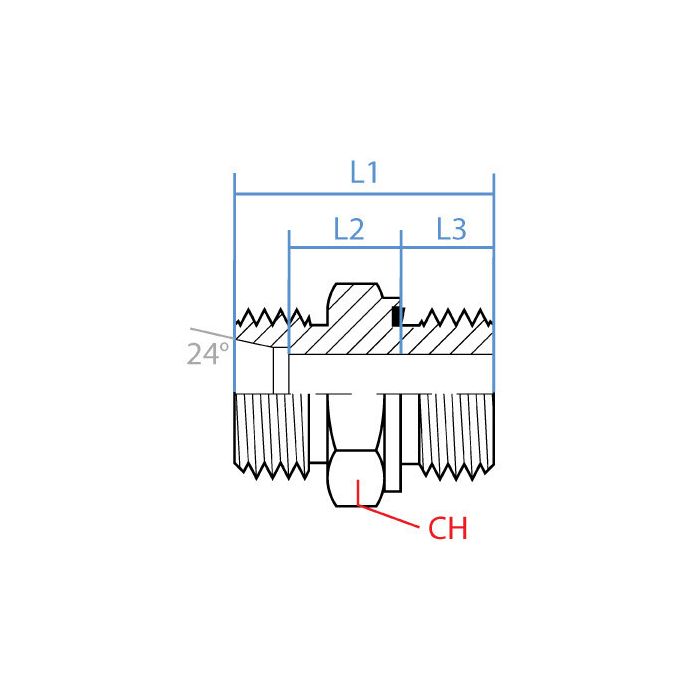

Adaptall Din X Male Metric W/Es Seal 5068S-20-22

Specifications

Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M30 X 2.0	Side 1 Gender M	Side 1 Size S20	Side 1 Type Din Tube	Side 2 Callout M22 X 1.5	Side 2 Gender M	Side 2 Size 22mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5068S-20-22	Product Weight 0.30 lbs

Product Questions & Answers 2

Product Questions & Answers

Got a DIN tube fitting on one side and a metric male connection on the other, does this adapter actually bridge those two thread standards in one piece?

Question by: Glen R on Oct 27, 2025, 9:11 PM

That's what it does. One end is M30 x 2.0 for the DIN tube side, and the other end is M22 x 1.5 for the metric male connection. Both sides are male, so you're threading into female ports on each end of your system. One straight steel adapter handles the whole transition without needing an extra coupler in between.

Answer by: Customer Support on Oct 29, 2025, 9:52 AM

trying to hook a DIN tube line to a metric port, is this the right adapter for that?

Question by: Shawn S on May 16, 2025, 6:19 AM

For joining those two thread styles, it’s a straight steel adapter that goes from a DIN Tube connection on Side 1 with an M30 x 2.0 male thread (S20 callout) over to a Metric connection on Side 2 with an M22 x 1.5 male thread (22 mm callout).

Answer by: Customer Support on May 18, 2025, 6:50 AM
