Brass Male Metric X Female Npt 8235-14-02

Specifications

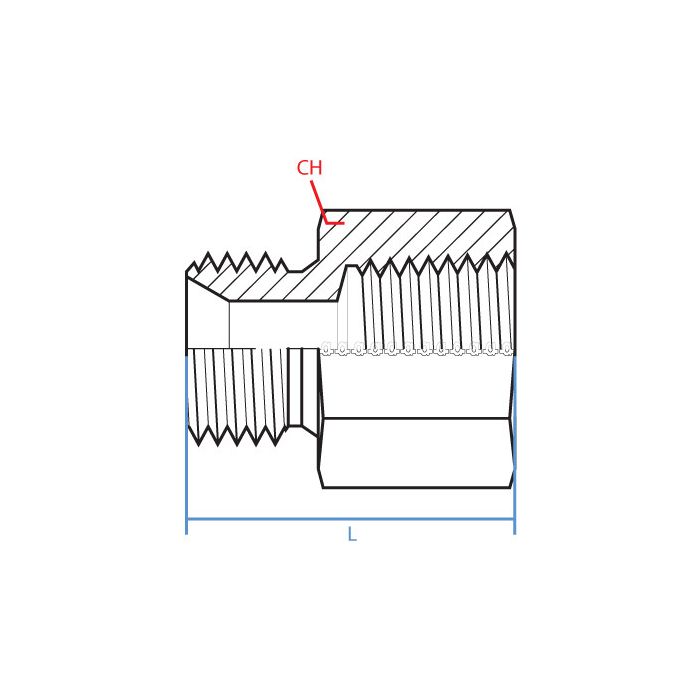

CH Width 19mm	Adaptall Material Brass	Adaptall Shape Straight	Side 1 Callout M14 X 1.5	Side 1 Gender M	Side 1 Size 14mm	Side 1 Type Metric	Side 2 Callout 1/8 - 27 NPTF	Side 2 Gender F	Side 2 Size 1/8"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 8235-14-02	Product Weight 0.10 lbs

Product Questions & Answers 3

Product Questions & Answers

Will this fitting hold up to some decent pressure or is it more for low-pressure stuff?

Question by: Dale H on Jul 22, 2025, 6:56 PM

Constructed from durable brass, this fitting should handle typical hydraulic pressures well, but it's always best to check your system's specific pressure requirements to ensure compatibility.

Answer by: Customer Support on Jul 24, 2025, 10:32 AM

fitting's got a male M14 x 1.5 thread on one end -- does the other side take standard 1/8 NPT female connections or is it some oddball size?

Question by: Wayne P on Sep 28, 2025, 9:24 PM

The female end is 1/8-27 NPTF, which is the standard 1/8" NPT thread. That size is about as common as it gets in hydraulic and pneumatic hydraulic connections, so you should have no trouble mating it to any standard 1/8" NPT male fitting or port.

Answer by: Customer Support on Sep 30, 2025, 4:22 PM

got a port that’s 1/8-27 nptf female and I need to adapt it to a metric M14 x 1.5 line, is this the right fitting?

Question by: Connie R on Sep 25, 2025, 9:27 PM

For that combination, it matches up as a straight brass adapter with a male M14 x 1.5 on one side and a female 1/8 - 27 NPTF on the other.

Answer by: Customer Support on Sep 27, 2025, 7:41 AM
