Brass Female Bsp Coupling

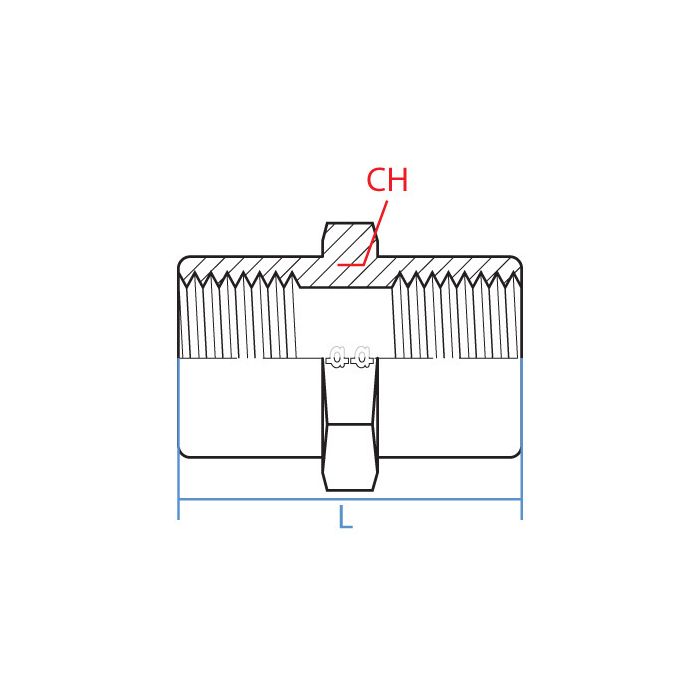

CH Width 17	L Length 19.10	Adaptall Material Brass	Adaptall Shape Straight	Side 1 Callout G 1/4 - 19	Side 1 Gender F	Side 1 Size 1/4"	Side 1 Type Bspp	Side 2 Callout G 1/8 - 28	Side 2 Gender F	Side 2 Size 1/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 8043-04-02	Product Weight 0.05 lbs

Product Questions & Answers 3

Product Questions & Answers

Got a 1/4" BSPP line that needs to step down to a 1/8" BSPP port, this fitting handle that?

Question by: Shane R on Oct 5, 2025, 6:55 AM

That's what it's built for. One end is G 1/4-19 and the other is G 1/8-28, both female BSPP, so it bridges those two thread sizes in a straight shot. Brass construction, compact at 19.1mm in length, and it'll give you a wrench flat of 17 for tightening it down without fighting it.

Answer by: Customer Support on Oct 6, 2025, 7:10 PM

Will this fitting work to connect a 1/4" BSPP fitting to a 1/8" BSPP fitting?

Question by: Glen S on Aug 25, 2025, 8:17 AM

This Adaptall coupling is designed to connect fluid lines that have different sized BSPP threads, 1/4" and 1/8".

Answer by: Customer Support on Aug 27, 2025, 6:24 AM

trying to hook a 1/4 BSPP line to a 1/8 BSPP port, is this the right little straight adapter?

Question by: Frank L on May 25, 2025, 4:02 PM

For stepping between those two BSPP sizes, it fits that job. Side 1 is a female G 1/4-19 and Side 2 is a female G 1/8-28, both BSPP, in a straight brass coupling.

Answer by: Customer Support on May 26, 2025, 6:50 PM
