Brass M.Bspp X F.Bspp Bushing 8039-08-06

Specifications

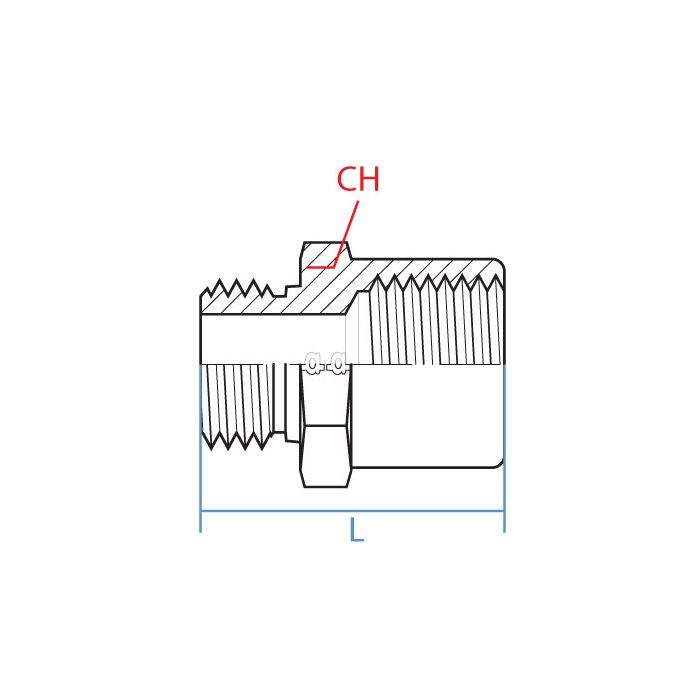

CH Width 24	L Length 15.60	Adaptall Material Brass	Adaptall Shape Straight	Side 1 Callout G 1/2 - 14	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Bspp	Side 2 Callout G 3/8 - 19	Side 2 Gender F	Side 2 Size 3/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 8039-08-06	Product Weight 0.05 lbs

Product Questions & Answers 3

Product Questions & Answers

got a G 1/2 - 14 BSPP port but my hose end is G 3/8 - 19 BSPP. Is this the right bushing to step it down

Question by: Carl J on Nov 20, 2025, 6:09 AM

For a straight thread size reduction, it matches that setup: male G 1/2 - 14 BSPP on one side and female G 3/8 - 19 BSPP on the other. It is meant to adapt between those two BSPP thread sizes in hydraulic and fluid power hookups.

Answer by: Customer Support on Nov 21, 2025, 7:53 AM

What size threads are on this bushing? I'm needing to reduce down from 1/2 inch to 3/8 inch.

Question by: Denise J on Mar 24, 2026, 7:36 AM

You've got it right. This bushing has a 1/2" male BSPP thread on one side and a 3/8" female BSPP thread on the other, so it'll do exactly what you need.

Answer by: Customer Support on Mar 25, 2026, 3:54 PM

Got a 1/2 inch BSPP port on a pump housing and need to tie into a 3/8 inch BSPP line. this bushing do that job?

Question by: Frank W on Sep 27, 2025, 3:41 PM

That's what it's built for. The male end threads into your 1/2 inch BSPP port using a G 1/2 - 14 connection, and the female end accepts a G 3/8 - 19 fitting on the smaller line side. Straight configuration, no offset or angle, so it drops right in wherever you need a clean inline reduction between those two thread sizes.

Answer by: Customer Support on Sep 29, 2025, 10:21 AM
