Brass M.Bspp X F.Bspp Bushing

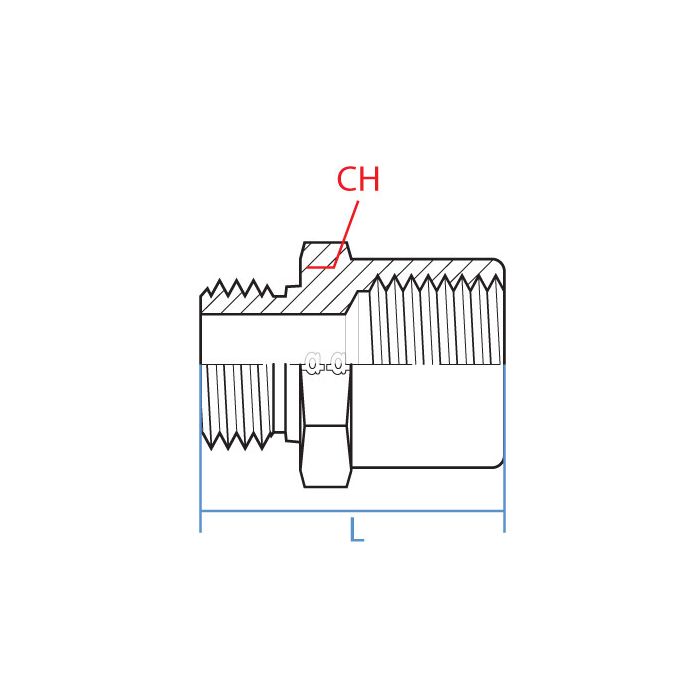

CH Width 19	L Length 14	Adaptall Material Brass	Adaptall Shape Straight	Side 1 Callout G 3/8 - 19	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Bspp	Side 2 Callout G 1/4 - 19	Side 2 Gender F	Side 2 Size 1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 8039-06-04	Product Weight 0.05 lbs

Product Questions & Answers 1

Product Questions & Answers

What size threads are we dealing with on each end of this bushing? Trying to figure out if it'll work for a reducer fitting situation I got going on.

Question by: Peggy W on Apr 19, 2025, 3:37 PM

Male side is 3/8" BSPP, callout G 3/8 - 19. The female end is 1/4" BSPP, callout G 1/4 - 19. So yes, it does function as a reducer, stepping down from the larger male thread to the smaller female thread. Both sides are BSPP, so as long as your existing fittings match those thread types and sizes, you're in good shape.

Answer by: Customer Support on Apr 21, 2025, 10:37 AM
