Brass Male Bspt X Female Npt 8036-02-02

Specifications

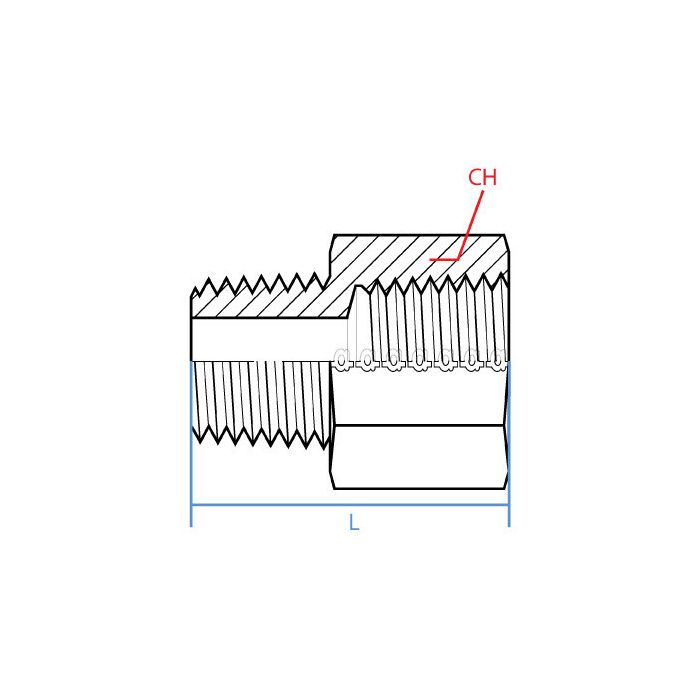

CH Width 14	L Length 25.30	Adaptall Material Brass	Adaptall Shape Straight	Side 1 Callout R 1/8 - 28	Side 1 Gender M	Side 1 Size 1/8"	Side 1 Type Bspt	Side 2 Callout 1/8 - 27 NPTF	Side 2 Gender F	Side 2 Size 1/8"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 8036-02-02	Product Weight 0.05 lbs

Product Questions & Answers 3

Product Questions & Answers

thread specs on both ends of this thing, is it R 1/8-28 on the male side and 1/8-27 on the female end?

Question by: Rusty R on Jul 12, 2025, 9:50 PM

That's right. The male BSPT side runs R 1/8-28 and the female NPTF side is 1/8-27. Both ends are 1/8" size, so as long as your fittings match up to those thread counts you should be good to go.

Answer by: Customer Support on Jul 14, 2025, 6:10 AM

Is this adapter made from brass all the way through? Just wanna make sure it can handle the conditions in my shop.

Question by: Lee A on Sep 29, 2025, 6:20 AM

Yes, it is made entirely of brass, which is known for its corrosion resistance and strength, so it should hold up well in an industrial environment.

Answer by: Customer Support on Sep 30, 2025, 2:24 PM

got a fitting with R 1/8 - 28 on one side and i need to land it into a 1/8 NPT female port, is this the right adapter?

Question by: Hubert H on Jan 12, 2026, 4:44 PM

It bridges a male BSPT thread (R 1/8 - 28) over to a female NPTF thread (1/8 - 27), with 1/8 inch size on both ends, so it matches that thread callout combination.

Answer by: Customer Support on Jan 14, 2026, 6:41 AM
