Brass Countersunk Bspt Plug 8030CSP-02

Specifications

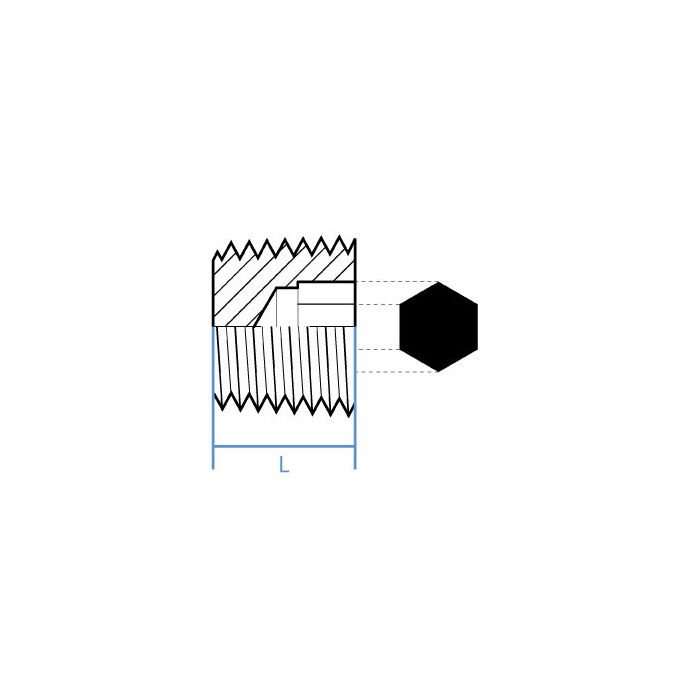

CH Width 10	L Length 7.70	Adaptall Material Brass	Adaptall Shape Plug	Side 1 Callout R 1/8 - 28	Side 1 Gender M	Side 1 Size 1/8"	Side 1 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 8030CSP-02	Product Weight 0.01 lbs

Product Questions & Answers 3

Product Questions & Answers

got a manifold port that needs a flush plug, is this the kind with the countersunk head that sits down in there

Question by: Wes S on Oct 15, 2025, 11:15 AM

With the countersunk head, it’s meant to sit flush or slightly recessed in the port, which helps when you need clearance or want a clean surface on a manifold, valve body, or similar fluid power part.

Answer by: Customer Support on Oct 17, 2025, 9:51 AM

Got a manifold block with some real tight clearance around the port openings. Will a countersunk plug sit flush enough to not cause fitment problems with adjacent components?

Question by: Glen W on Jan 29, 2026, 9:15 PM

Flush seating is exactly what the countersunk head profile is built for. The head sits recessed or flush within the port rather than protruding above the surface, so in assemblies where clearance is tight or a clean face is needed, it won't create interference with neighboring hardware. The body length on this one is 7.7 mm, and the wrench width is 10 mm, so you can plan your clearance around those figures.

Answer by: Customer Support on Jan 31, 2026, 3:37 PM

Is this plug made of real brass, or is it just plated?

Question by: Rex M on Jul 4, 2025, 10:29 AM

The body is manufactured entirely from brass. This provides good corrosion resistance for hydraulic fluids and pneumatic media.

Answer by: Customer Support on Jul 6, 2025, 8:54 AM
