Brass Male Bspt Nipple

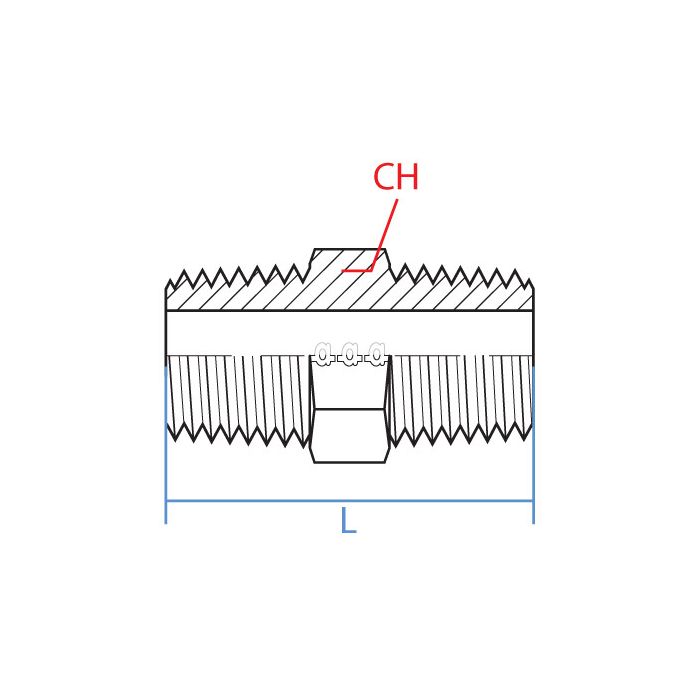

CH Width 22	L Length 31.10	Adaptall Material Brass	Adaptall Shape Straight	Side 1 Callout R 1/2 - 14	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Bspt	Side 2 Callout R 3/8 - 19	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 8010-08-06	Product Weight 0.08 lbs

Product Questions & Answers 2

Product Questions & Answers

what's the size difference between the two ends on this nipple? trying to figure out if it'll work as a reducer between two lines

Question by: Todd P on Jun 14, 2025, 7:34 PM

One end is 1/2" male BSPT with an R 1/2 - 14 thread callout, and the other end is 3/8" male BSPT with an R 3/8 - 19 callout. So yes, it does step down between those two sizes. Both ends are male BSPT, and the fitting is made from brass with a straight body. Overall length runs 31.1 mm with a 22 mm width across the flats for wrenching.

Answer by: Customer Support on Jun 16, 2025, 6:38 AM

Trying to hook a 1/2 BSPT port up to a 3/8 BSPT line, is this the right little nipple for that?

Question by: Steve K on Sep 12, 2025, 6:31 PM

For stepping between BSPT sizes, this fitting matches a 1/2 inch male BSPT on one end and a 3/8 inch male BSPT on the other. The thread callouts are R 1/2 - 14 and R 3/8 - 19, so it is meant for BSPT connections on both sides.

Answer by: Customer Support on Sep 14, 2025, 6:26 AM
