Din X Male Metric W/Es Seal

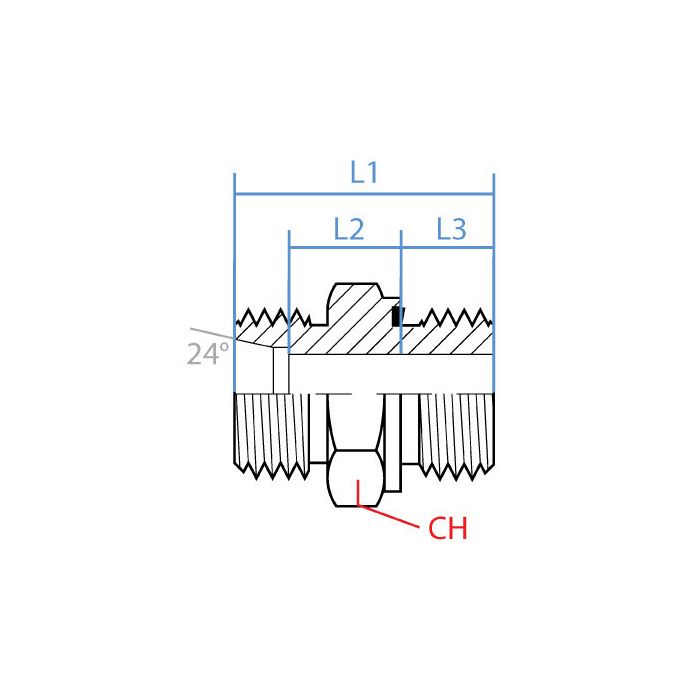

CH Width 24mm	L1 Length 31.5mm	L2 Length 12.5mm	L3 Length 12mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M18 X 1.5	Side 1 Gender M	Side 1 Size L12	Side 1 Type Din Tube	Side 2 Callout M18 X 1.5	Side 2 Gender M	Side 2 Size 18mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5068L-12-18	Product Weight 0.12 lbs

Product Questions & Answers 1

Product Questions & Answers

Both sides are M18 x 1.5 metric on this thing, so what exactly makes it a "DIN X Metric" fitting if the thread size is the same on both ends?

Question by: Curt W on Oct 15, 2025, 7:45 AM

The thread callout being identical on both sides can definitely cause some head-scratching. Side one is a DIN tube end, which uses a 24-degree cone seat configuration common in DIN hydraulic tube fittings. Side two is a standard metric port end with an elastomeric seal. Same thread size, different end-form geometry. The elastomeric seal on the metric side is what creates the port seal, while the DIN side connects to the tube assembly. So even though both read M18 x 1.5, they're meant to interface with different mating components.

Answer by: Customer Support on Oct 16, 2025, 10:37 AM
