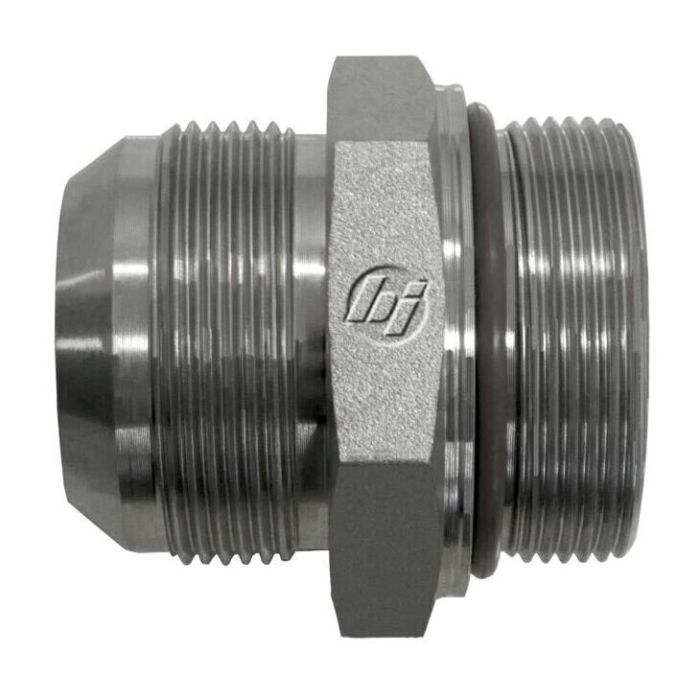

10MJ-22MM ISO 6149 STRAIGHT 7640-10-22-O

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 7640-10-22-O	Product Weight 1.00 lbs

Product Questions & Answers 3

Product Questions & Answers

Does this adapter go from a JIC fitting on one end to a metric ISO port on the other, or am I reading the thread specs wrong?

Question by: Roger C on May 26, 2025, 11:35 AM

You're reading it right. One end is a 7/8-14 male JIC with a 37-degree flare, which follows SAE J514. The other end is a male M22x1.5 metric fitting that seats into an ISO 6149 O-ring port. So yes, it bridges those two different thread standards in a single straight adapter. The O-ring seal material is NBR, which handles a good range of fluids well in typical hydraulic setups.

Answer by: Customer Support on May 27, 2025, 7:36 PM

trying to swap out an old fitting, is this one the straight adapter that goes from 7/8-14 JIC flare over to an M22x1.5 ISO 6149 o-ring port?

Question by: Roger C on Nov 3, 2025, 6:27 PM

Function-wise it is a straight adapter with a male JIC SAE 37 degree flare on the B1 side in 7/8-14 (SAE J514) and a male metric ISO 6149 O-ring connection on the B2 side in M22x1.5. It uses an NBR O-ring seal on the ISO 6149 side.

Answer by: Customer Support on Nov 5, 2025, 12:36 PM

What kind of material is this adapter made out of?

Question by: Shane B on Oct 8, 2025, 3:55 PM

Constructed from straight steel, this adapter offers good durability for industrial use.

Answer by: Customer Support on Oct 10, 2025, 8:37 AM
