45* Din X Male Metric Adj

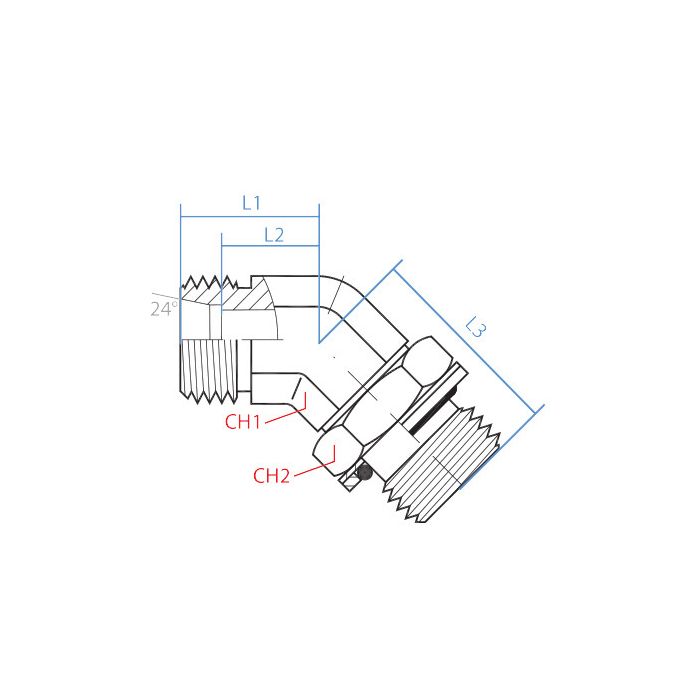

CH1 Width 27mm	CH2 Width 27mm	L1 Length 25mm	L2 Length 16.5mm	L3 Length 41mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout M24 X 1.5	Side 1 Gender M	Side 1 Size S16	Side 1 Type Din Tube	Side 2 Callout M22 X 1.5	Side 2 Gender M	Side 2 Size 22mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5066S-16-22	Product Weight 0.43 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this fitting work with standard metric tubing or is it only for DIN spec?

Question by: Earl C on Dec 2, 2025, 3:50 PM

It's designed for DIN tube connections on one side (M24 x 1.5 threads) and standard metric on the other (M22 x 1.5 threads). So you can use it to connect the two different types.

Answer by: Customer Support on Dec 4, 2025, 8:00 AM

trying to swap an elbow out, is this one the 45 degree steel adaptall with m24 x 1.5 on one end and m22 x 1.5 on the other?

Question by: Tammy R on Sep 20, 2025, 8:38 PM

It’s a 45° steel elbow with a DIN tube connection on Side 1 using M24 x 1.5 threads (size S16) and a male metric connection on Side 2 using M22 x 1.5 threads (size 22mm). Both ends have 27mm wrench flats.
